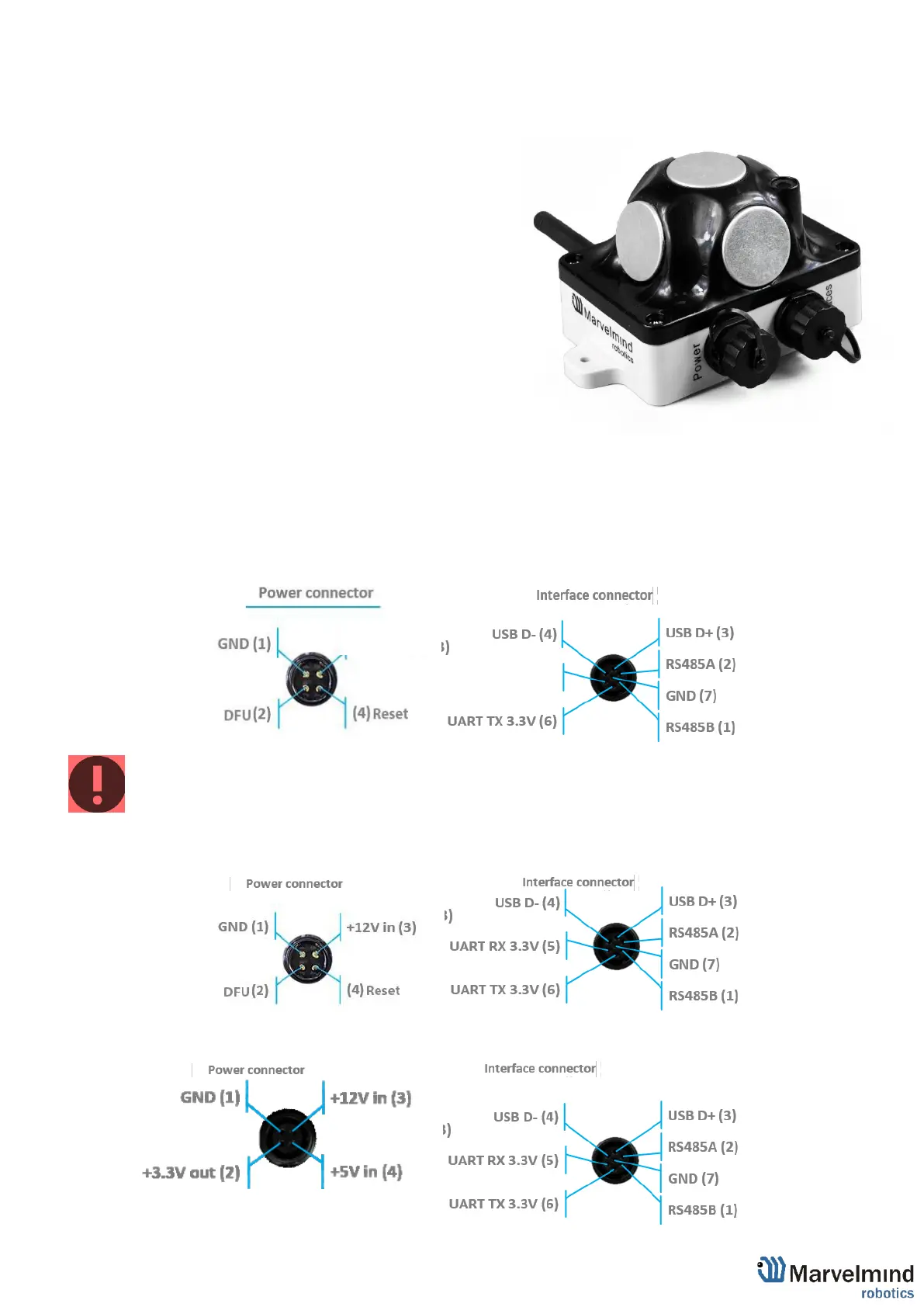

3.6.4. Beacon Industrial-TX-Metal
Do not disassemble the Industrial beacons. Otherwise, warranty will be lost
- TX-only beacon – can transmit
ultrasonic, but can’t receive it
- Electronics is IP67 protected
- Special IP67-protected 25kHz
transducers
- External antenna with SMA connector for
extended radio range
- Corresponding IP67 connectors (male
part) included
- No battery inside
- Extended working temperature range
from -40°C to +50°C (not tested,
provided by design)
- Embedded reset switch and DFU switch – magnetic control
- Two IP67 external connectors:
- Modification (After June 2022) for versions 2 and 3
- Version 2 and 3 of Industrial-TX-Metal (from June 2022) supports ONLY +5V power
supply. Don’t use +12V power supply converter for this version, it will burn the beacon!
- This version doesn’t have UART RX, but now is possible to use Interface connector as a
power supply.
- RS485 modification pinouts (After Sep.2019)
- RS485 modification pinouts (Before Sep.2019)
