SedLine Sedation Monitor Chapter 2: System Descriptions
www.masimo.com 16 Masimo

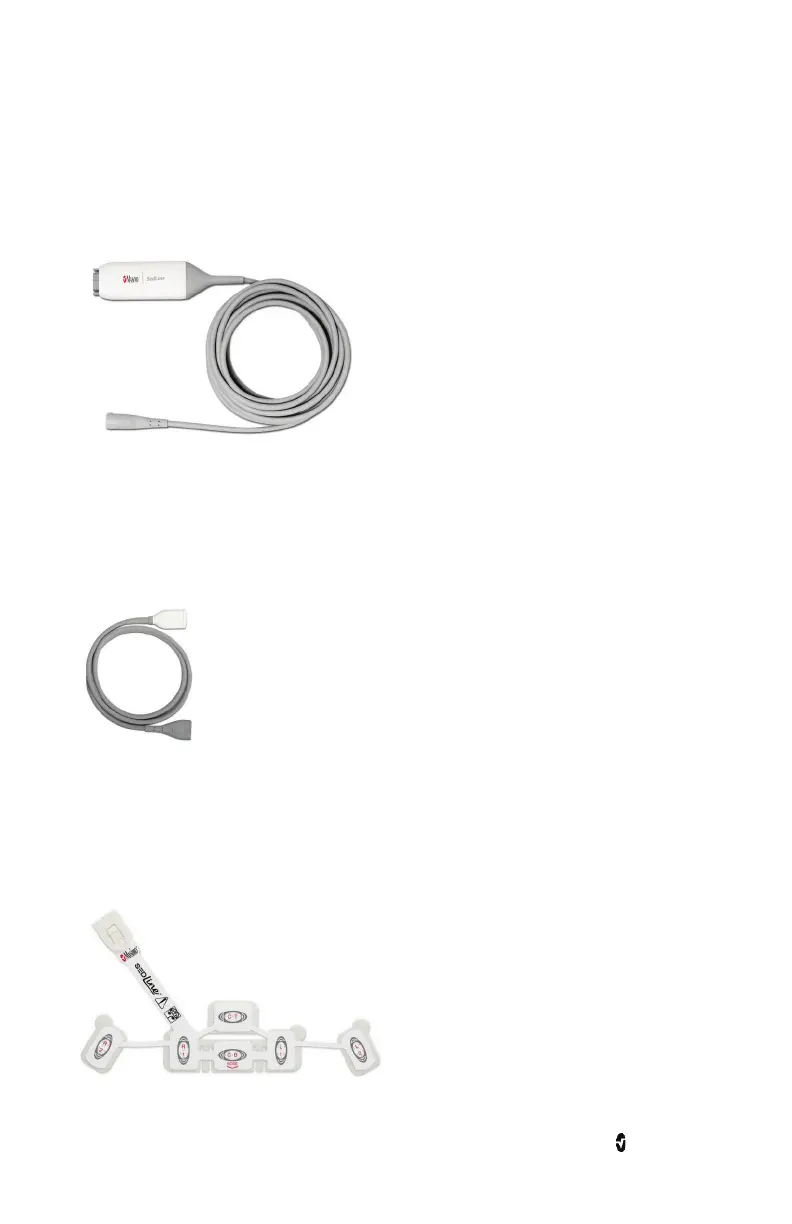

SedLine Module
The SedLine Module computes and calculates PSI and additional parameters using the EEG
signals acquired from the SedLine Sensor. The module connects Root to the SedLine Patient
Cable and receives its power from Root.
SedLine Patient Cable
The SedLine Patient Cable transfers analog EEG signals collected from the SedLine Sensor to
the SedLine Module for processing. The patient cable is reusable and may be used from
patient to patient.
SedLine Sensor(s)
The SedLine Sensor is comprised of six (6) gelled electrodes, including four (4) active
channels (R1, R2, L1, L2), one reference channel (CT), and one ground channel (CB). The
sensor is a single-use, non-sterile product that does not contain natural rubber latex.

Masimo sedline Specifications

General

Channels	4 EEG channels
Parameters	EMG
Connectivity	Ethernet, USB
Compatibility	Masimo Root
Application	sedation monitoring
Power Source	Battery
