Masimo sedline - Connecting the Module to Root; Connecting the Sedline Sensor to the Patient

SedLine Sedation Monitor Chapter 3: Setting Up the System
www.masimo.com 19 Masimo
Connecting the Module to Root
To connect the module to Root

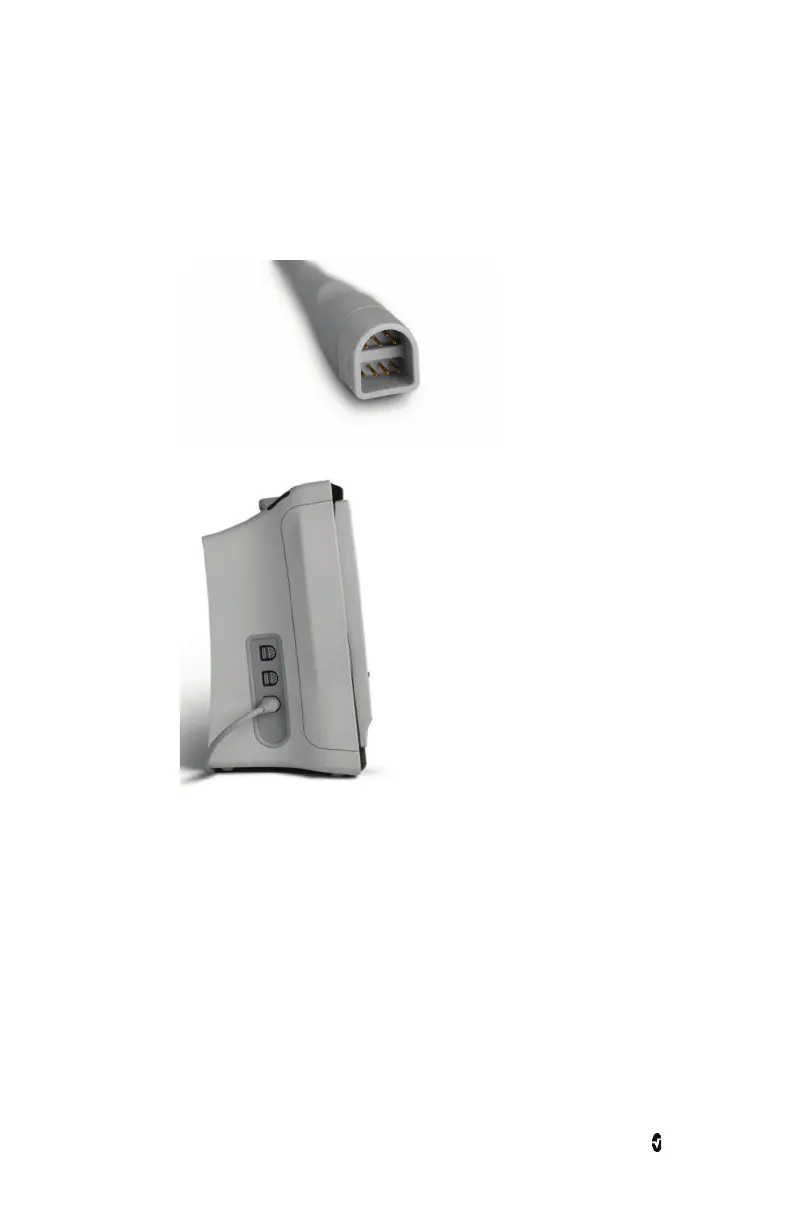

1. Identify the Masimo Open Connect (MOC-9
TM
) end of the module.
2. Insert the MOC-9 end of the module securely into a MOC-9 port on Root.
Connecting the SedLine Sensor to the Patient
For directions on how to connect the SedLine Sensor, see the Directions for Use (DFU) for
SedLine Sensors.
