SedLine Sedation Monitor Chapter 3: Setting Up the System
www.masimo.com 18 Masimo
Connecting the Module to the Patient Cable

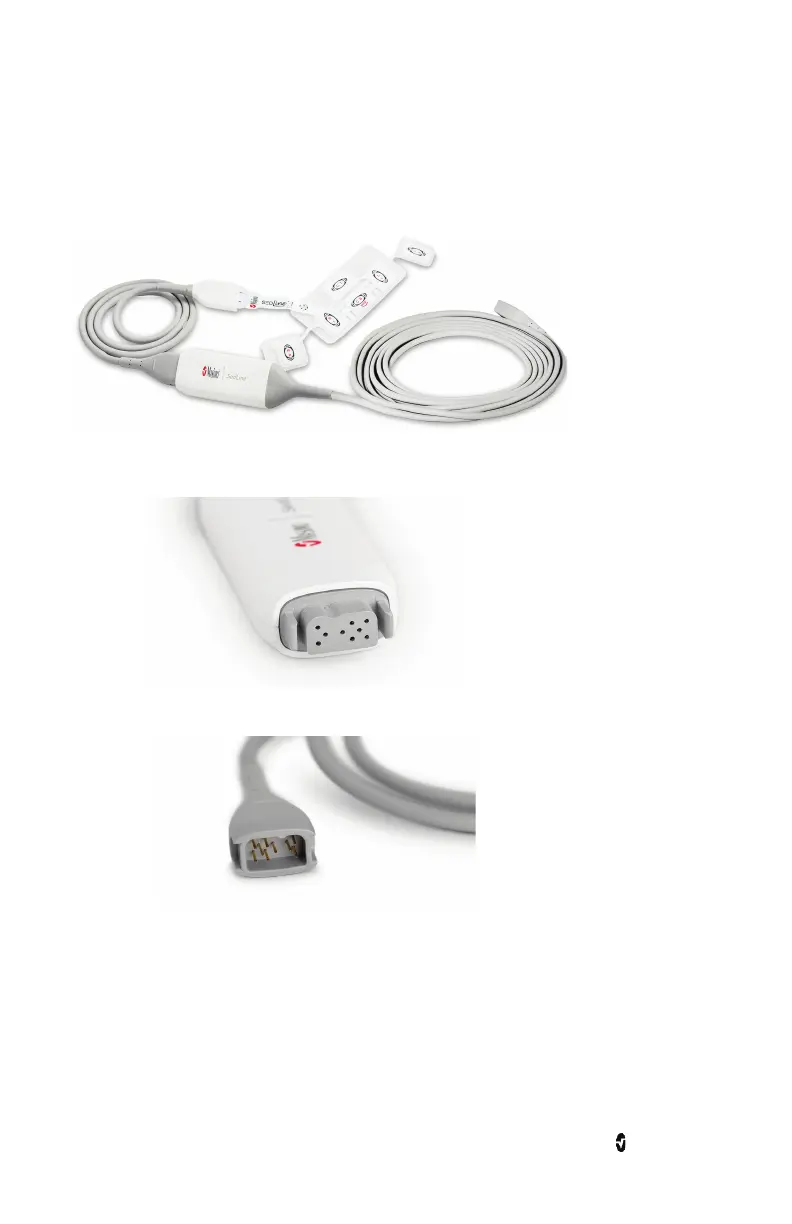

The image below shows various SedLine system components connected.
To connect the module to the patient cable
1. Identify the module connector end.
2. Align the ridged patient cable connector end with the available module connector
end.
3. Push to insert.
4. For additional details, see the Directions for Use (DFU) for the patient cable.

Masimo sedline Specifications

General

Channels	4 EEG channels
Parameters	EMG
Connectivity	Ethernet, USB
Compatibility	Masimo Root
Application	sedation monitoring
Power Source	Battery
