EEG Display
Electrode Status

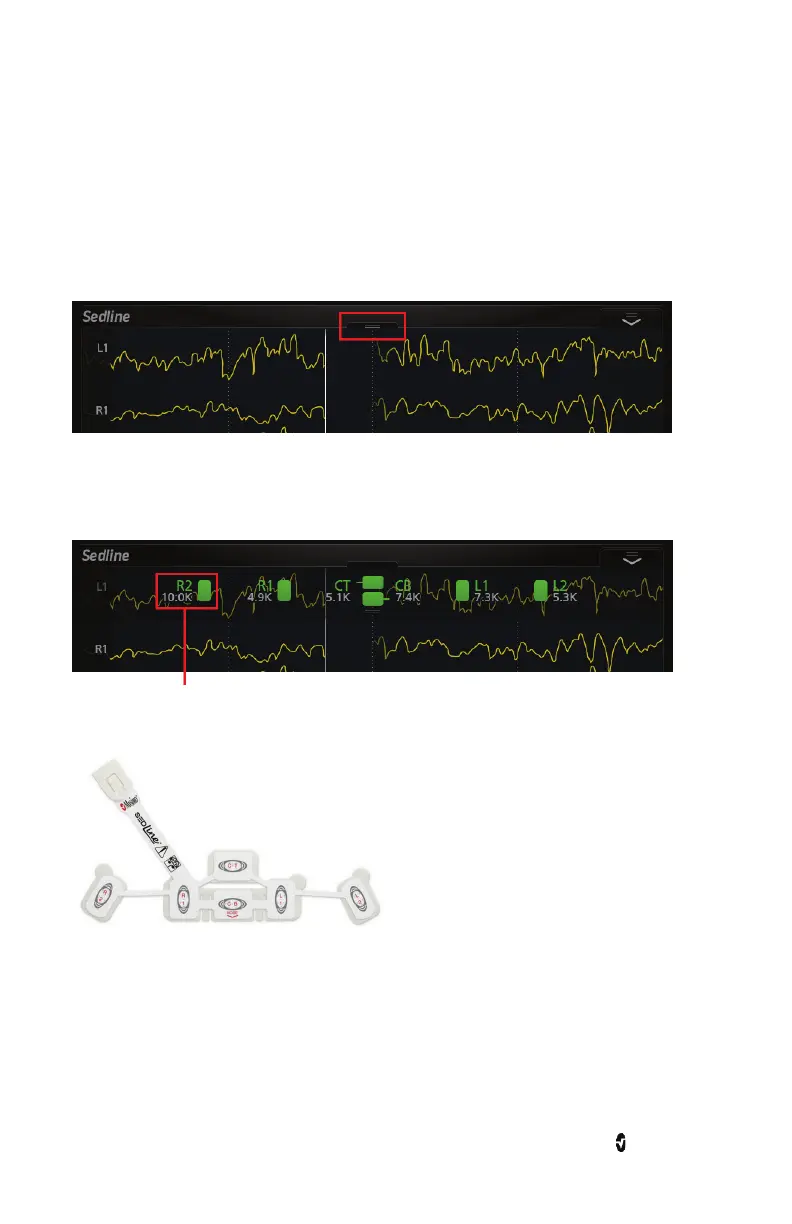

This feature in the SedLine window is used to monitor electrode impedance. To reveal the
Electrode Status Display, swipe down on the tab shown below.
The Electrode Status display provides electrode connectivity status of the sensor. There are
six (6) icons on the Electrode Status display that correspond to the six sensor electrodes, as
shown in the following illustration. For example, the Electrode Status display icon labeled as
R2 corresponds to the R2 electrode of the sensor.
Each icon label corresponds with electrode label on SedLine Sensor

Masimo sedline Specifications

General

Channels	4 EEG channels
Parameters	EMG
Connectivity	Ethernet, USB
Compatibility	Masimo Root
Application	sedation monitoring
Power Source	Battery
