20
1. If you have no picture at all check to see if you have any status lights
on your controller or TV. (TV light is after the x in the “Matrix” logo,
controller light is next to power button). Status lights should be red
when o or in standby mode, and green when the TV is powered on.
If you have lights of any color skip to section 8.5.3.
2. Check all electrical connections associated with the TV -
connections at theTV, outlet, adapter, machine and controller.
After you have veried all connections are secure and problem
still exists verify power at the outlet. (Figure A)
3. If outlet passes check power supply for the TV to make sure it
is outputting 12 volts, if not replace power supply. (Figure B)
4. If power supply passes detach TV mounting bracket from the
mast and seperate the connection for the power. (Figure C)
Verify 12 Volts coming from the wires inside the mast, if not
replace the wires/connections inside the machine. Reconnect
if 12 Volts present.
5. If internal wiring passed, verify 12 Volts at the TV connection plug.
Replace the wire inside the TV mounting tube if there is no power
at the TV connection point. If 12 Volts present at the TV plug it is
likely a TV problem - contact Matrix Fitness.

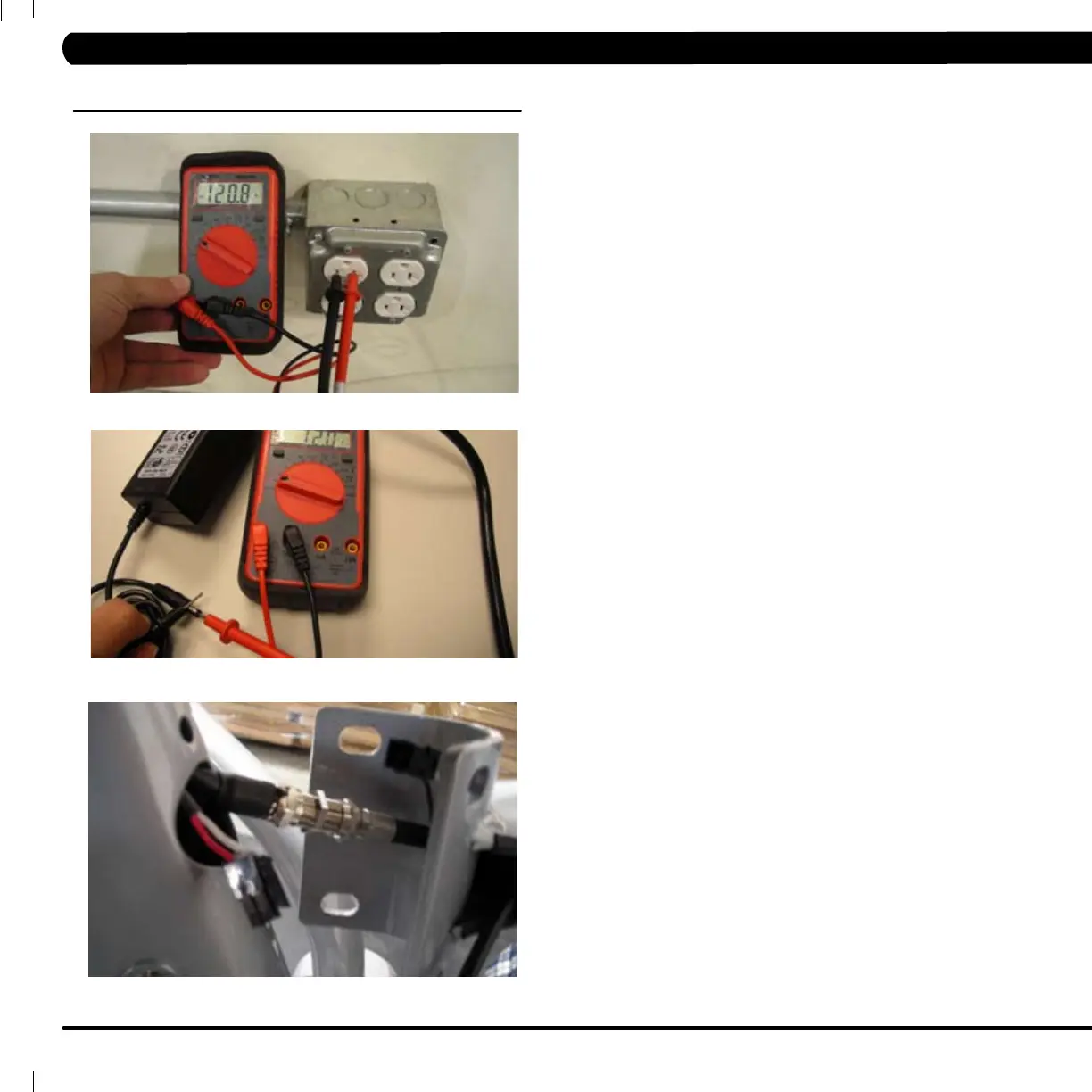

Figure A
Figure B
Figure C
8.5.2 ENTERTAINMENT – TV WILL NOT TURN ON
