Matrix MX-A5x Service Manual

40

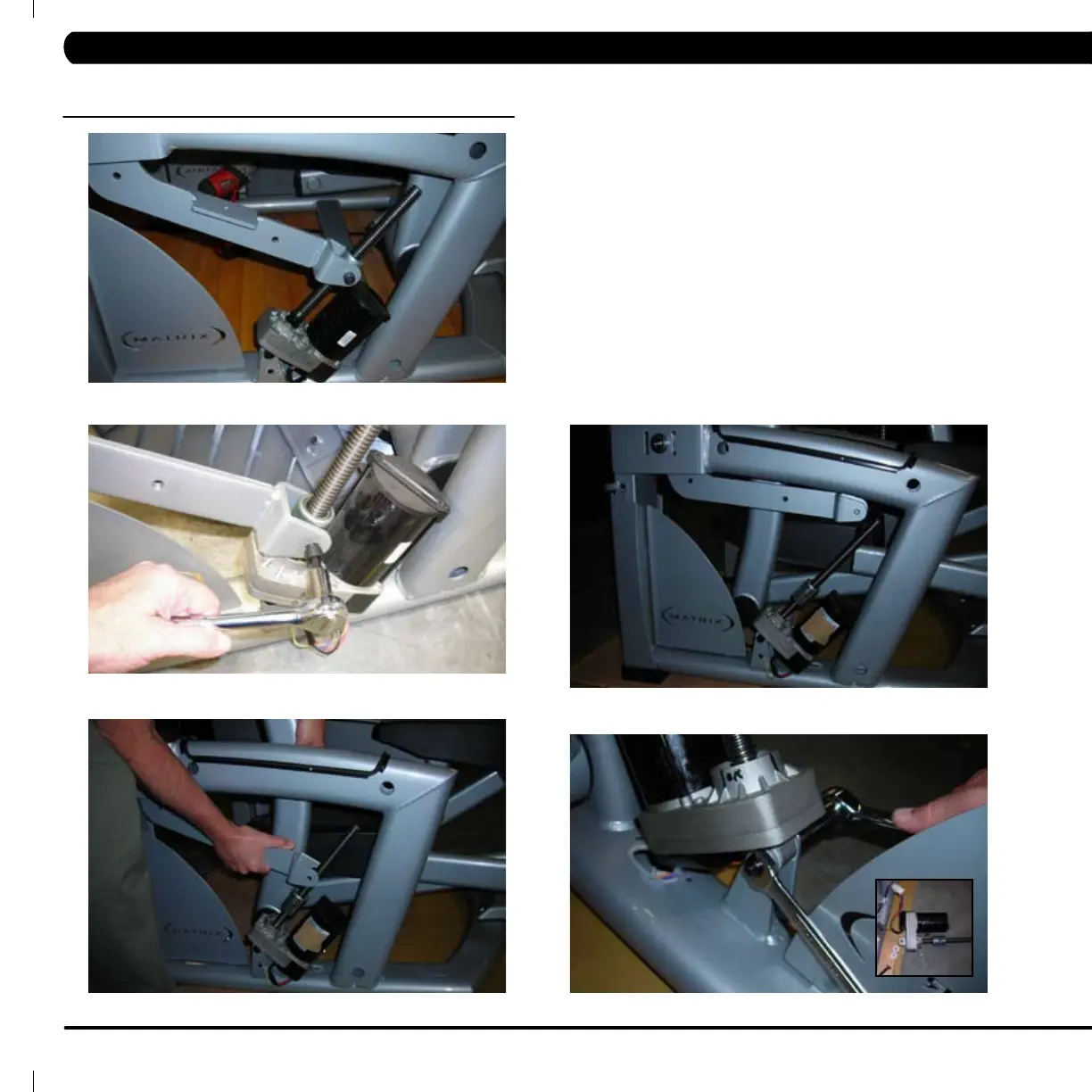

1. Turn o power and disconnect the cord from the machine.
2. Remove the rear plastic shrouds, outlined in Section 9.10 and
disconnect the motor ground wire from frame. (Figure A)
3. Carefully remove the two 8mm bolts that hold the swing arm to the
motor assembly – make sure to secure the swing arm as you remove
the bolts as it will fall. (Figures B and C)
4. Move the swing arm up to rest against the frame so it is clear of
the motor. For safety purposes Matrix tness suggests you secure
the arm to the frame even though it will hold itself in place with its
own weight. (Figure D)
5. Remove the motor by disassembling the pivot bolt and
disconnecting the wire connection. (Figure E)
Figure A
Figure B
Figure C
Figure D
Figure E
9.10 INCLINE MOTOR REMOVAL AND INSTALLATION
CHAPTER 9: PART REPLACEMENT GUIDE
