45
9.13 SWING ARM REMOVAL AND INSTALLATION

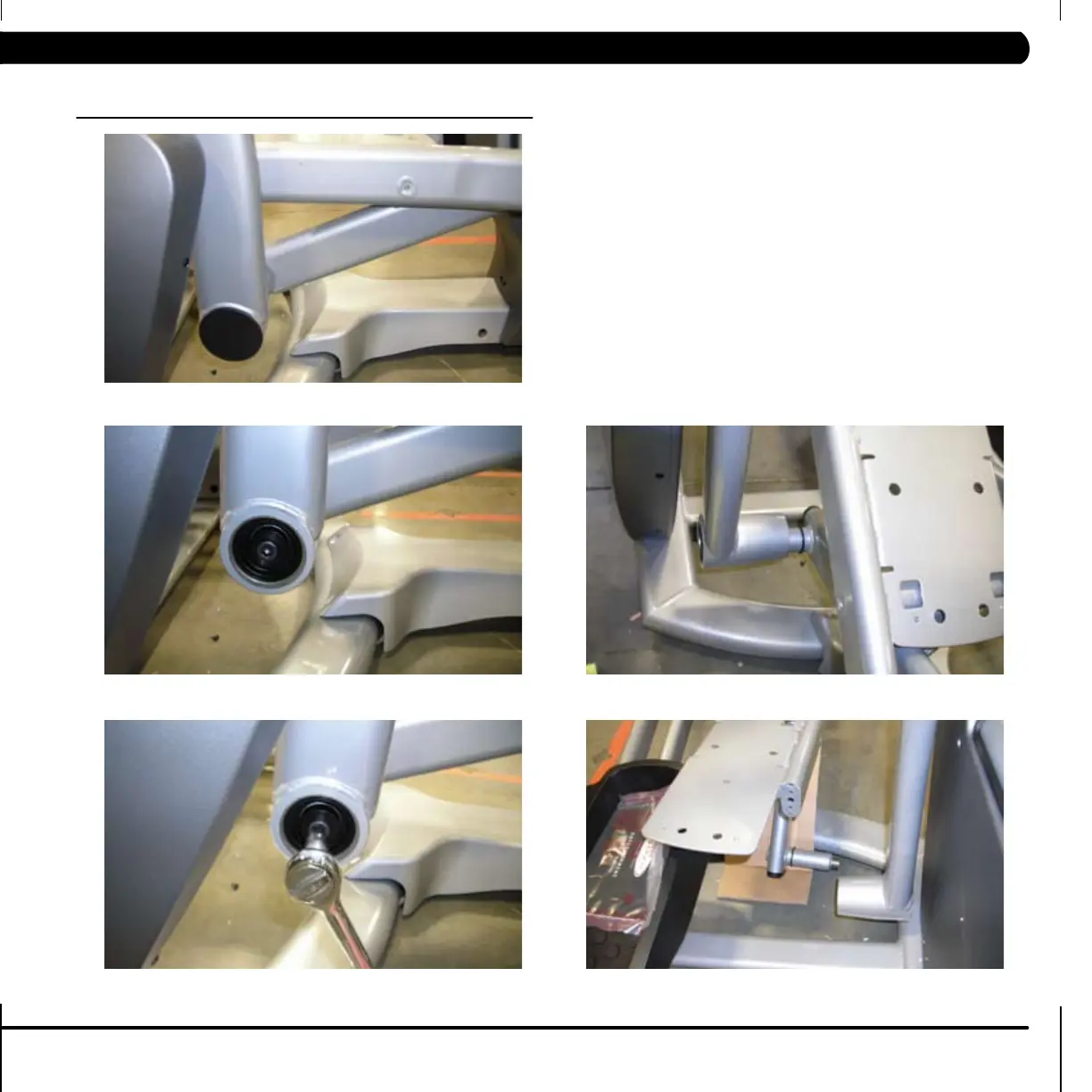

Figure A
Figure B
Figure C
Figure D
1. To service or replace a swing arm you should rst disconnect the
link arm from the dual action arm as outlined in the rst part of
Section 9.1. The link arm contains the foot pedal and connects to
the dual action arm in the front.
2. Rotate the crank assembly forward so you can access and remove
the black plastic cover on the lower swing arm joint. (Figures A
and B)
3. Remove the bolt that holds the swing arm lower assembly together.
(Figure C) (Tighten to 28 N-m torque during reassembly)
4. Carefully tap the crank arm inward until it can be pulled free of the
bearing housing. (the pedal arm assembly is free to pivot so there
is no need to remove it from the machine) (Figures D and E)
Figure E
CHAPTER 9: PART REPLACEMENT GUIDE
