CHAPTER 9: PART REPLACEMENT GUIDE
31

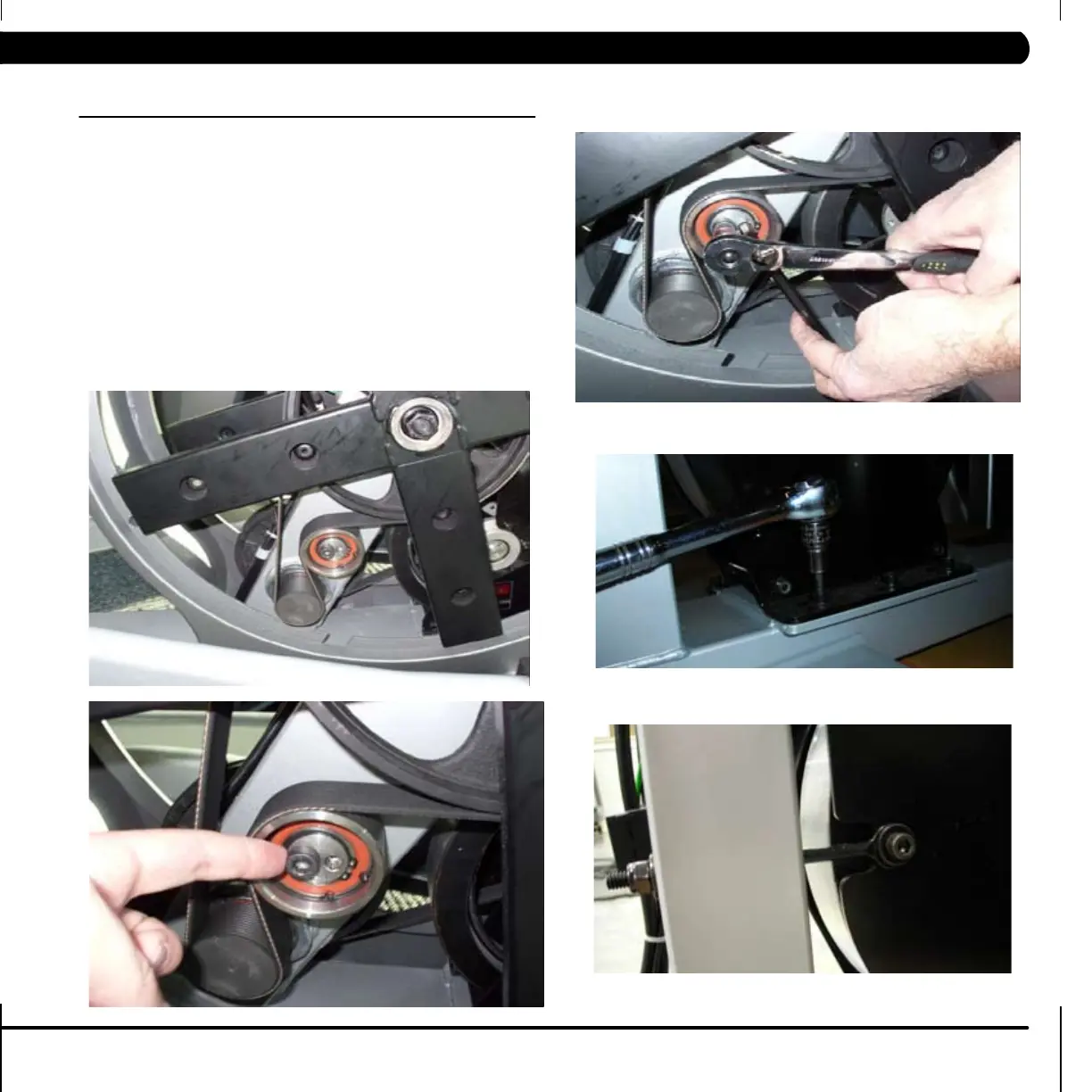

9.42 BELTS REMOVAL AND INSTALLATION  LONG BELT RUN
4 . (options 1-3 on page 30) - To remove the drive belt, loosen the belt
tension bolt on the left side of the tension pulley and rotate the pulley
counter-clockwise until there is enough slack in the belt to remove it
(Figures B &C).
5. To remove the ECB belt, loosen the 6 bolts holding the ECB to the frame
(Figure D).
6. Loosen the 11 mm nut on the tension loop bolt until there is enough
slack in the belt to remove it (Figure E).
7. Install replacement belt(s) and reverse necessary steps to secure the
assembly until the belt is tight. Tighten 6 ECB bolts to 12 N-m torque.
Tighten drive belt to 180 lbs. for new belt, 150 lbs. for used belt. Tighten
ECB belt to 120 lbs. Reassemble and test machine.
FIGURE A
FIGURE B
FIGURE C
FIGURE D
FIGURE E
