44

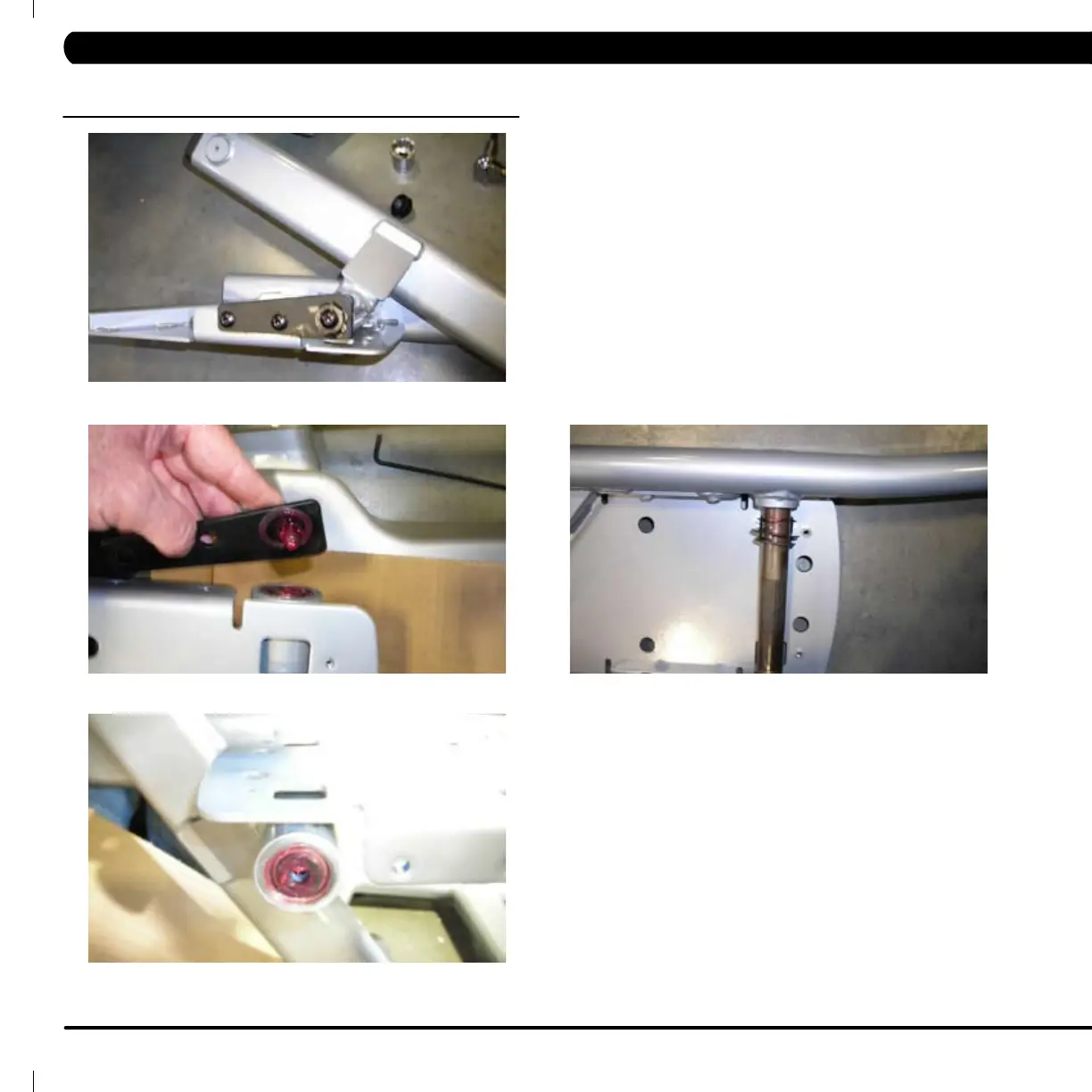

4. Remove the 3 bolts (Figure F) that hold on the mounting plate.
(Figure G) Note the plastic washer that mounts at the end of the
shaft. (Figure H)
5. Slide link arm shaft out of pedal arm housing to lube bearings
inside of pedal arm housing.
6. Reassemble with new parts by reversing steps 1-5, noting the
arrangement of washers on the link arm shaft. (Figure I)
7. Test the machine as outlined in section 9.99.
Figure F
Figure IFigure G
Figure H
9.12 LINK ARMS & PEDAL ARMS REMOVAL
AND INSTALLATION – CONTINUED
CHAPTER 9: PART REPLACEMENT GUIDE
