1. The dual action handlebar (Figure A) is attached to the link arm
at the bottom bracket and at the mast pivot. See section 9.1 for
plastic cover removal.
2. Remove the bolt and bushings at the bottom.
3. Remove the two bolts holding it to the mast pivot. (Figure C)
(When reassembling tighten to 34 N-m torque). (Figure B)
4. Remove the pivot cap and handlebar. (Figure D)
5. Repeat steps 1-4 to remove the opposite side.
6. Reverse steps 2-5 to replace handlebars.

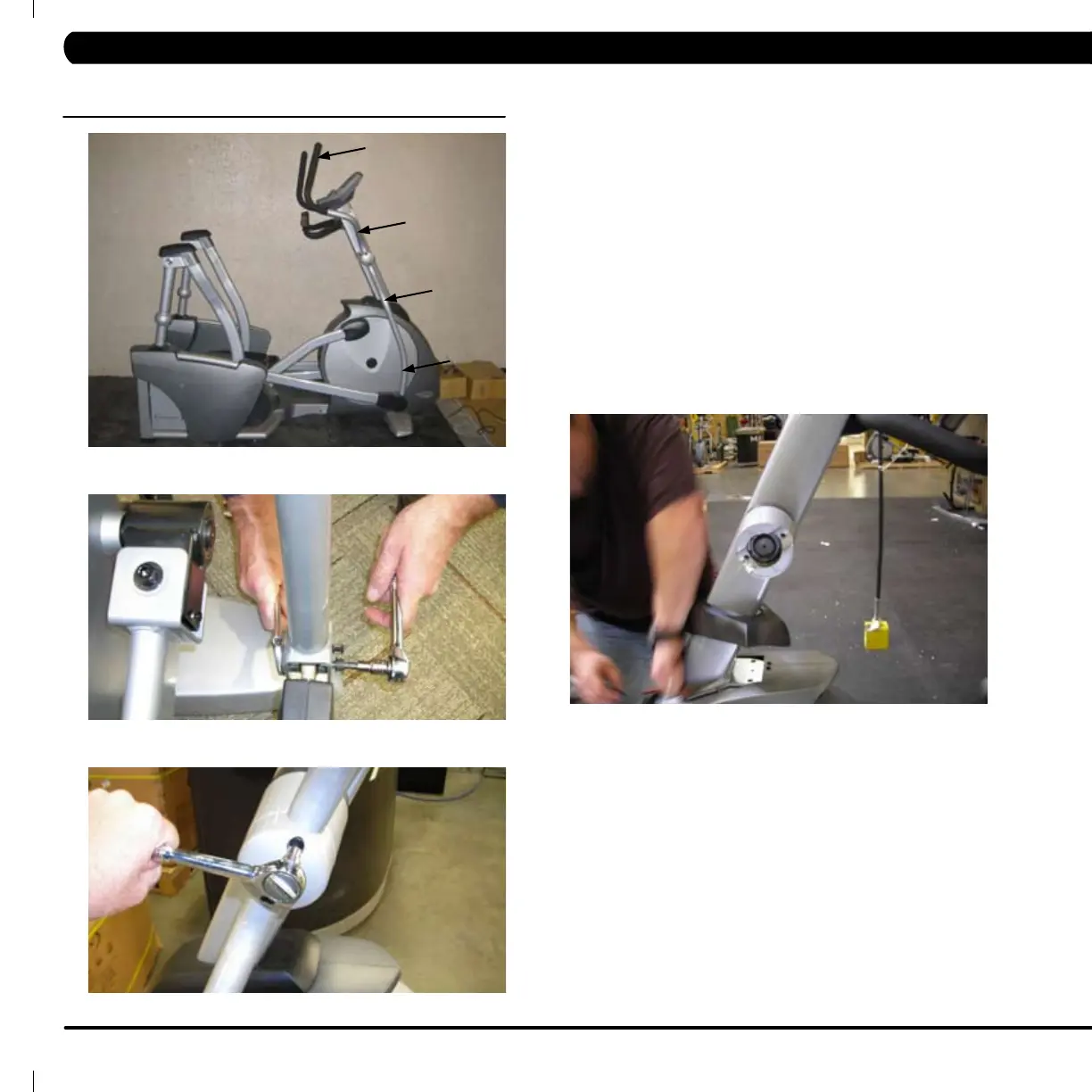

Figure A
Figure D
Figure B
Figure C
9.7 DUAL ACTION HANDLEBAR REMOVAL AND INSTALLATION
CHAPTER 9: PART REPLACEMENT GUIDE
