CHAPTER 9: PART REPLACEMENT GUIDE
9.1 FRONT DISK REMOVAL
Use caution when detaching pedal arm and link arm. Assemblies are heavy
and can cause injury.

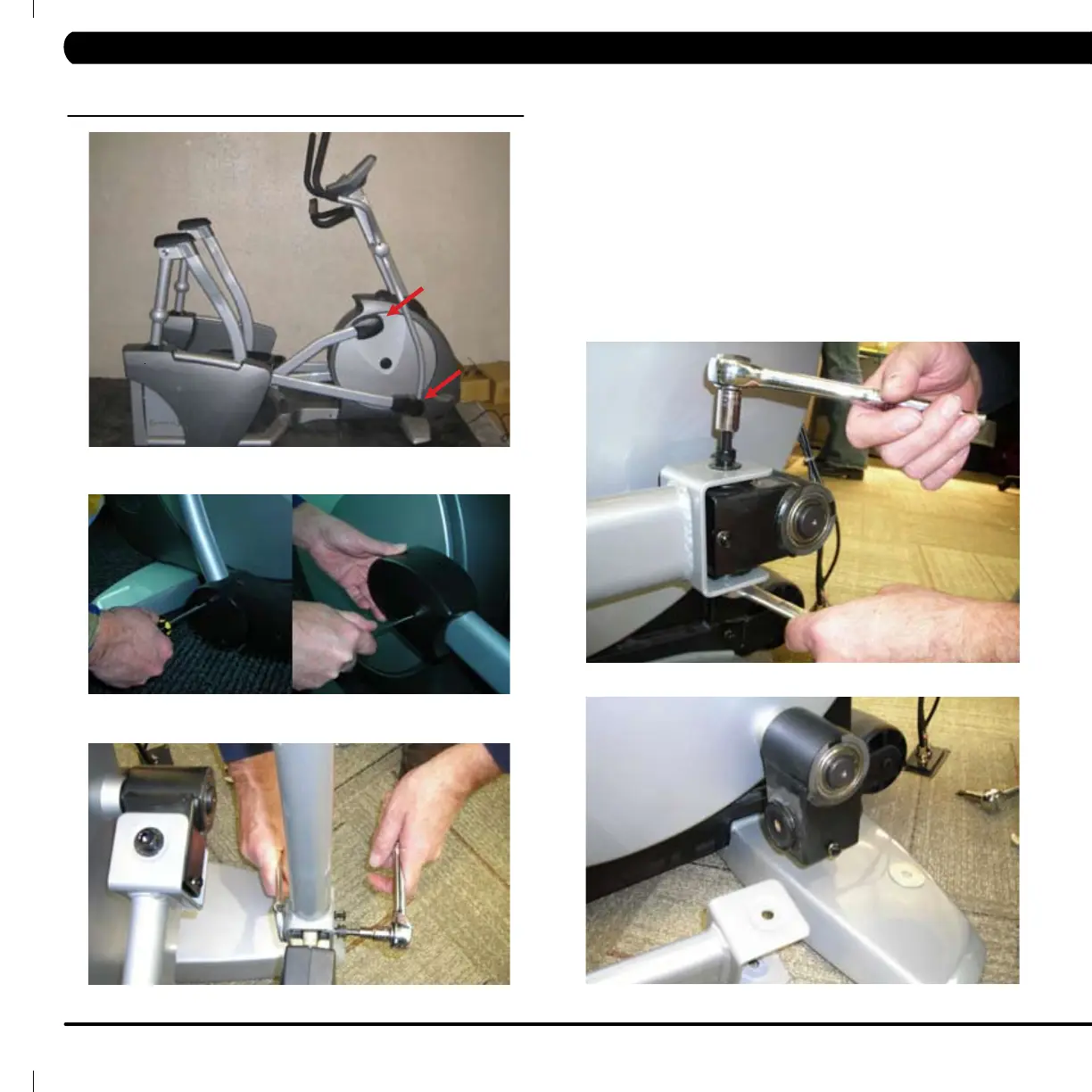

1. Remove link arm/pedal arm plastic caps (Figures A and B)
Note: Round dual-action end cap requires a short phillips screwdriver
to reach and remove inner screw.
2. Detach dual-action handlebar at link arm. (Figure C)
3. Detach pedal arm from crank bearing assembly. (Figure D)
4. Rest pedal arm padded surface on front stabilizer. (Figure E)
Figure A
Figure B
Figure C
Figure D
Figure E
