CHAPTER 8: TROUBLESHOOTING
On a new A5x Ascent Trainer, the rubber foot on the underside of the center
of the frame should be flush against the frame itself.
1. As pictured in Fig. 1, it has a washer that eliminates pressure againt
the nut that is inside the frame.
2. This rubber foot needs to be screwed in all the way, as shown in Fig. 2,
and is
not used for adjustments
3. All adjustments are made using the front stabilizer leveling feet, as
pictured in Fig. 3
4.
Most of the time you will be raising the front of the machine instead of
lowering it. Raise the front of the unit until you can fit a piece of paper
underneath the rubber foot as pictured in Fig. 4.
5. Once you have both feet set to a level position, use a 14mm or 17mm
wrench (depending on which stabilizing feet you have) to tighten the
jam nut and secure the feet, as shown in figure Fig. 5.
6. Test for stability by using the machine and adjusting either foot
appropriately for balance.
8.9 LEVELING THE A5X

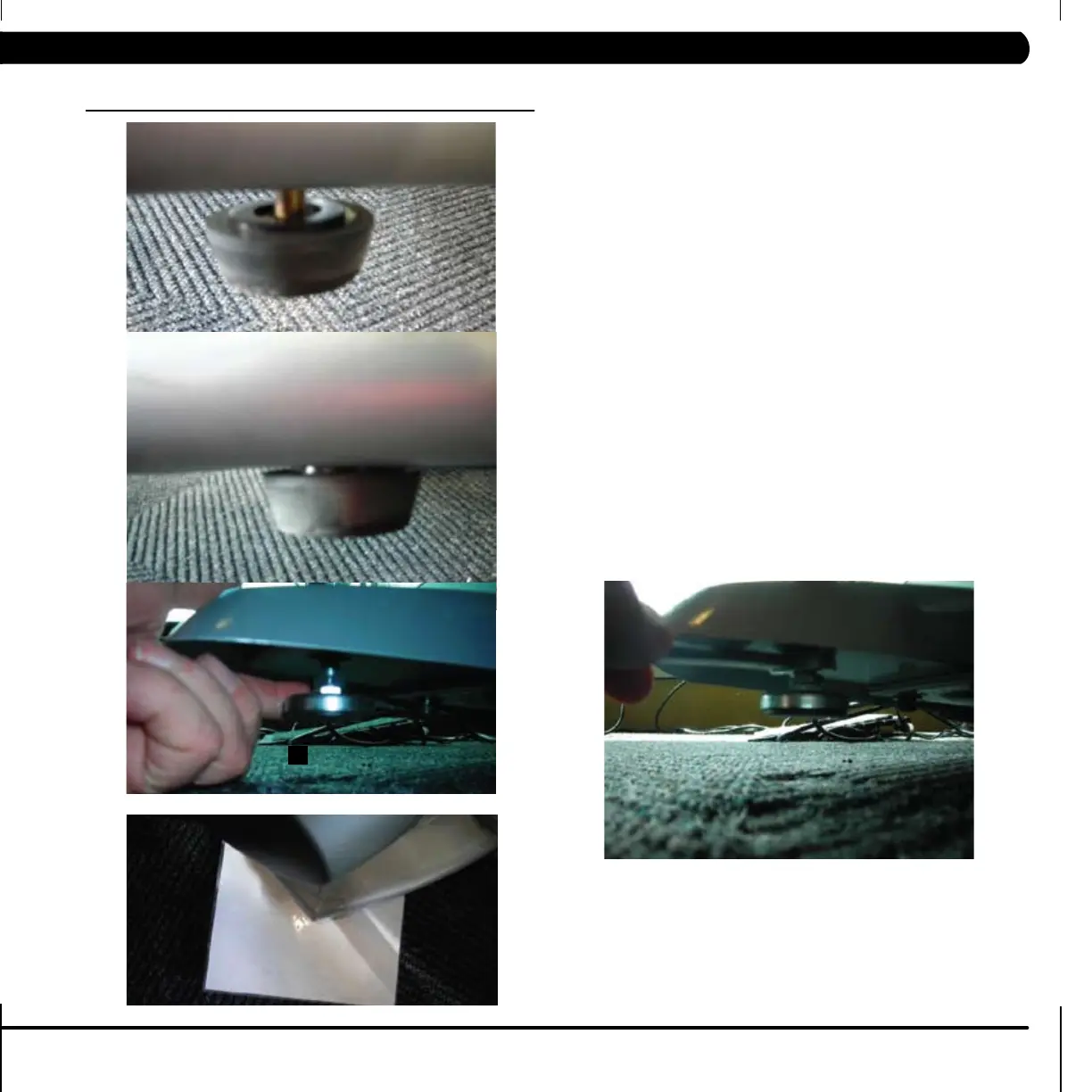

Figure 1
Figure 3
Figure 4
Figure 5
Figure 2
