5. Press and turn counter clockwise to remove plastic center cap.
(Figure F)
Note: There is a compression spring behind cap.
6. Remove 24mm locking nut and washer by turning counter
clockwise. (Figure G)
7. Thread Matrix disk removal tool into center hub. (Figures H and I)
Note: There are two dierent removal tools. If you have 3 tapped
holes on your center hub see Fig I, if the inside of the hub
is tapped (no holes) see Fig H.
8. Turn the center bolt of the removal tool clockwise until the main
disk can be removed. (Figures J and K) Repeat if necessary for the
opposite side disk.
Use Caution when removing the front disk. It is heavy and can cause injury.

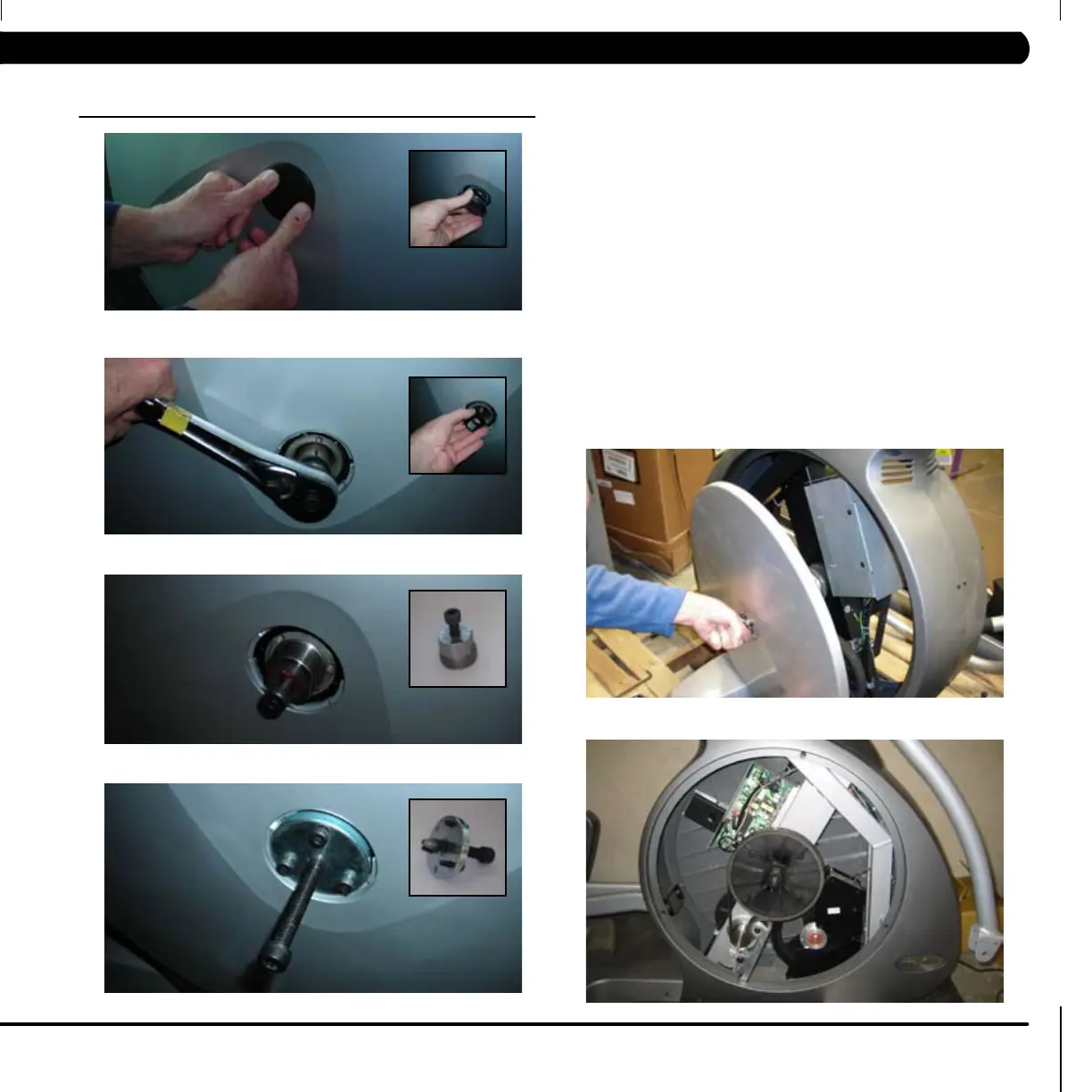

Figure F
Figure G
Figure H
Figure I
Figure J
Figure K
CHAPTER 9: PART REPLACEMENT GUIDE
9.1 FRONT DISK REMOVAL – CONTINUED
