McHale HS2000 Round Bale Wrapper
27

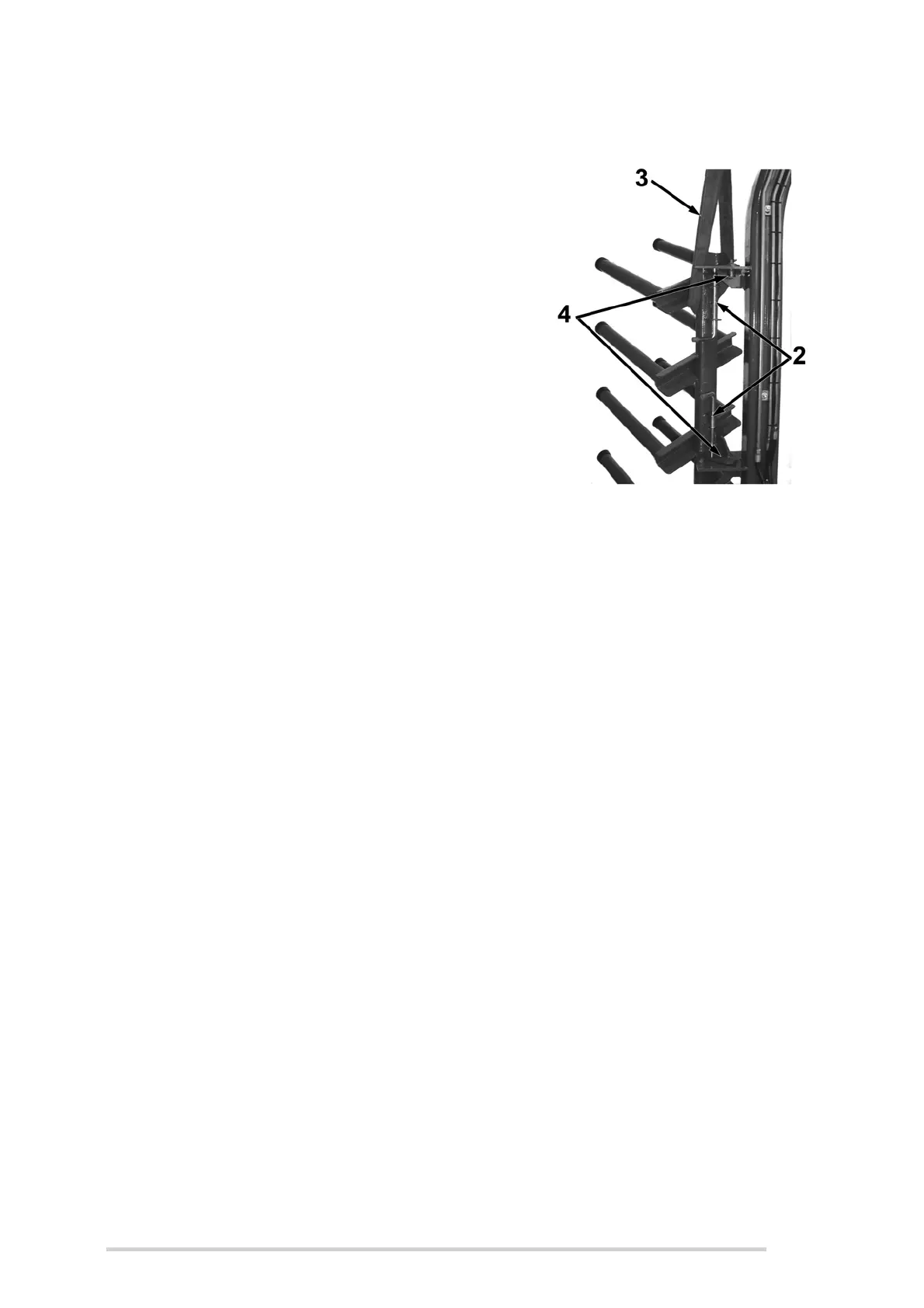

4.9.4 Fitting spare film roll holder
1. Remove wrapping material from film roll
holder.
2. Set locking spring bolts in unlocked
position.
3. Apply carrying sling.
4. Slide holder onto arch brackets through the
pivot holes.
5. Secure with the two M10 x 20 bolts,
washers and spring washers as supplied.
6. Release spring bolts and rotate holder to
the desired location. Check that both spring
bolts can fully engage in all 3 hole
positions.
