McHale HS2000 Round Bale Wrapper
64

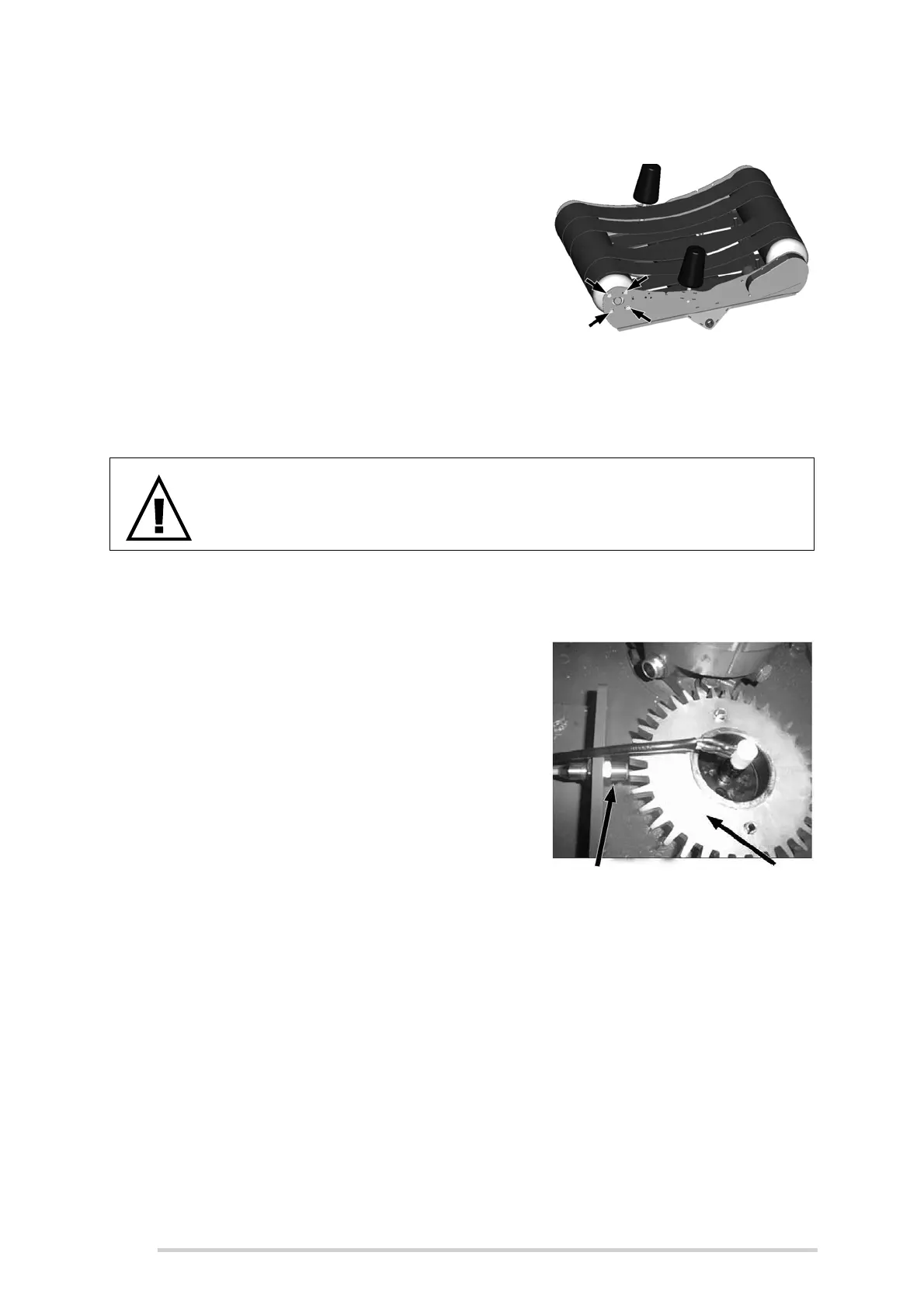

10.7 Table rollers/belts adjustment
If the table rollers need to be adjusted for any
reason they may be adjusted as follows:
1. Loosen the 4x M16 nyloc nuts and bolts
holding bearings on idle roller at both ends
as shown.
2. Move roller as desired ensuring both ends
are moved by the same amount.
3. This adjustment is correct when the bale can be rocked 50mm between rollers.
4. Tighten the 4x M16 nyloc nuts and bolts.
10.8 Proximity sensor adjustment (on top arch)
In the event that the proximity sensor does not work use the following procedure:
(see “Trouble shooting overview” on page 78)
1. Remove the top sensor guard.
2. Remove and replace, if necessary, the
proximity sensor ensuring to reconnect the
sensor to the loom. The sensor can be
inspected for proper operation by checking
if it flashes red as the dispensers are
rotated. Ensure to stand outside the
‘danger zone’ while inspecting this.
3. The sensor is to be located at a distance of
2 mm ± 1 mm away from the sensor
encoder. This distance is crucial to the
proper operation of the sensor.
4. Replace the top sensor guard.
WARNING: Disconnect power
Never carry out any adjustments without completely disconnecting the
hydraulic hosing and the machine from the tractor or baler.
Proximity
sensor
Sensor
encoder
