McHale HS2000 Round Bale Wrapper
63

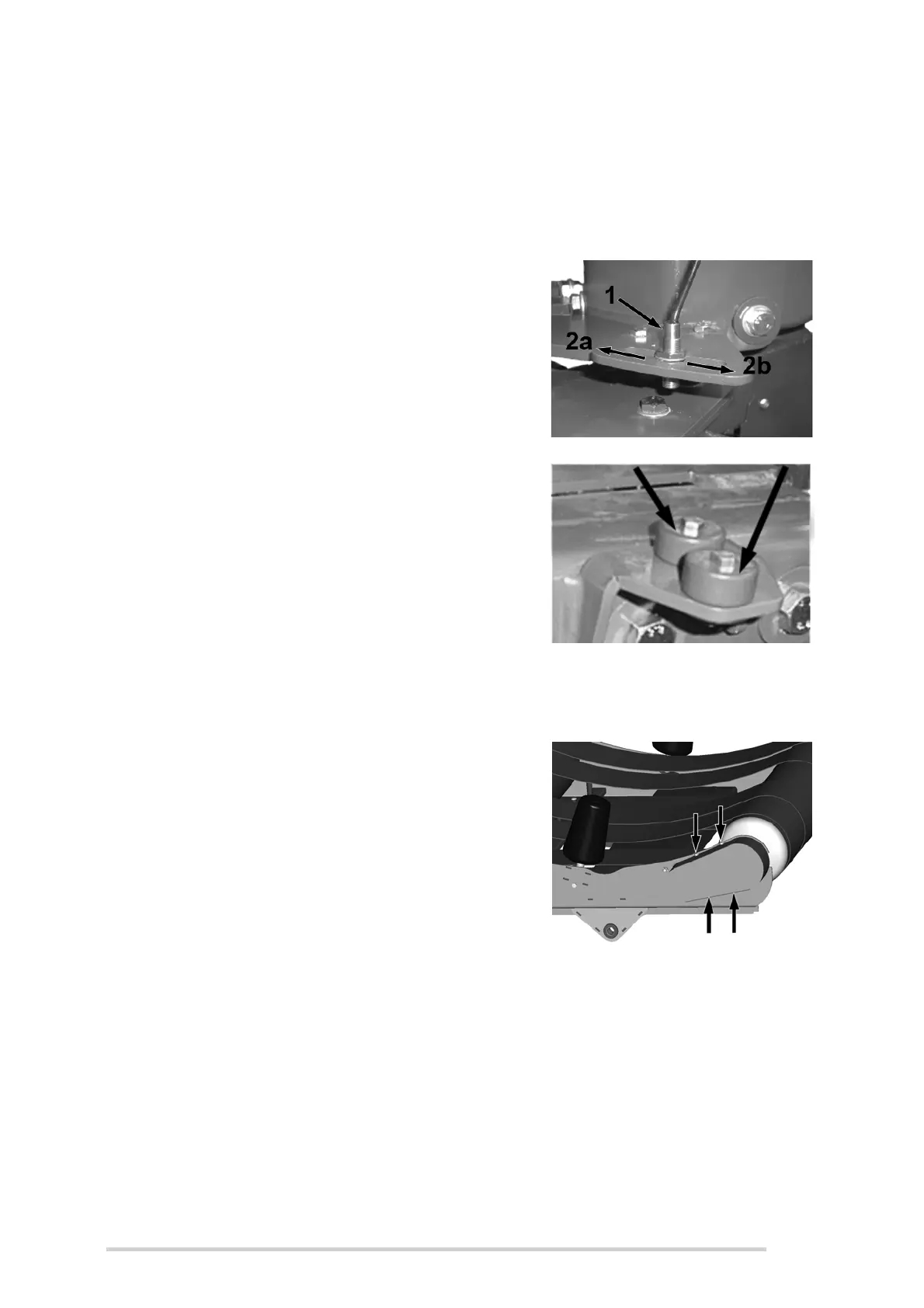

10.5 Dispenser arm sensor
In the unlikely event of the dispenser not finishing in the correct position such that the
cut and hold cannot get a firm grip on the plastic, then it may be necessary to adjust
the sensor (bale dimensions can also be a factor, see section 2.5).
1. Holding the sensor by hand, loosen the nut
on the sensor.
2. Move the sensor to the position that is
required
(a) Move to the left to get dispenser to
stop sooner.
(b) Move to the right to get dispenser to
stop later.
In the case of a magnet being damaged or broken,
it is necessary to replace it as both magnets are
required. As magnets have a North and a South
pole it is important, when replacing magnets, that
the magnets will have the same poles facing up as
shown. To check this, simply position the magnets
with flat sides facing one another until the magnets
repel one another (like poles repel, opposite poles
attract). Then face these like poles in the same
direction as one another.
10.6 Table roller drive chain
After a period of time it may become necessary to
readjust the table roller drive chain.To adjust go
through the following procedure.
1. Remove chain guard by undoing the four
bolts as indicated by the arrows.
2. Loosen the 4 x motor retaining bolts.
3. Tighten the adjuster until chain has
adequate tension.
4. Tighten the 4 x motor retaining bolts.
5. Replace chain guard with the 4 x bolts.
