McHale HS2000 Round Bale Wrapper
29
5.2 Baler requirements
The following items are also required on the baler for attachment of the bale wrapper
behind a baler:
1. Hitch on baler for wrapper
2. Two hydraulic hoses (feed and return) to
bring hydraulic supply from tractor to
wrapper, see section 5.8
3. One loom extension for electronic control
box
4. One lighting extension loom (option)
5. Flow control/diverter valve (option - varies
according to baler and tractor)
6. Camera for monitoring of wrapper during
use (option)
5.3 Electronic control box installation
The electronic control box must be located inside the tractor cab in the operator’s field
of vision and within easy reach of the red Emergency Stop button. It is secured to the
glass using the suction pad on the rear. Ensure that the cable to the machine is not
under tension and not near sharp edges, etc. The electric power supply is obtained
from the euro socket of the tractor.
Connect the supplied fused electric power lead to the tractor battery ensuring to route
away from sharp edges and hot surfaces. The control box is not waterproof, it must be
protected from rain. See “Electronic Control System” on page 42

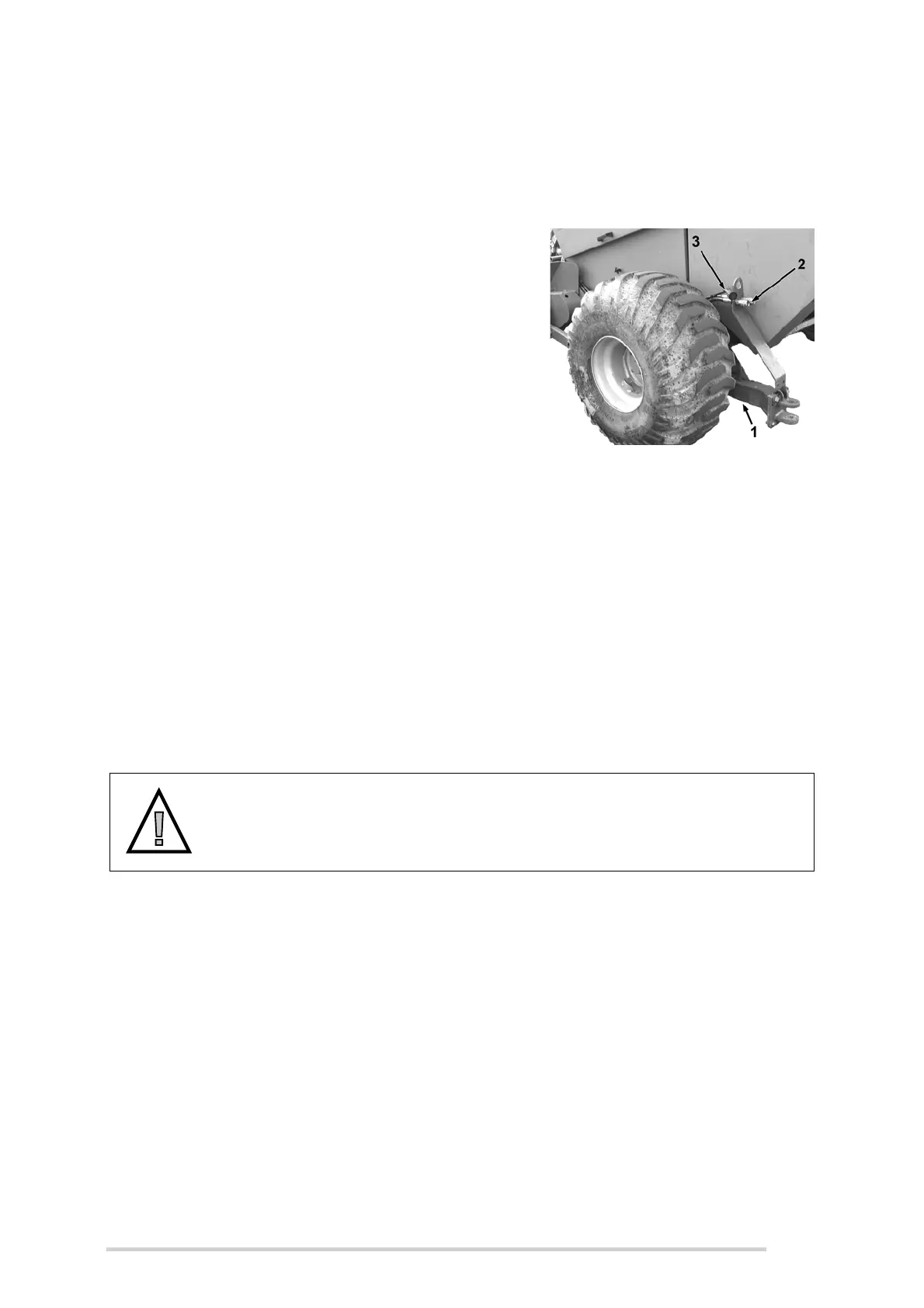

5.4 Attaching wrapper to tractor
1. Reverse tractor up to wrapper, lining up the hitch of the tractor with the hitch of
the wrapper.
2. Fit tow pin to hitch, ensuring it is secure.
3. Screw jack up off the ground, remove the locking pin and turn jack into
transport position.
4. Connect hydraulic connections.
5. Plug the 7 pin lighting plug into the 7 pin socket on the tractor.
6. Place the electronic box in the tractor cab and secure it to the glass in an
appropriate place using the suction pad on the rear. The safety strap must be
secured to protect the box from accidental damage. If there is no cab on the
tractor secure as appropriate, bearing in mind the box is not waterproof.
CAUTION: Electrical power supply
Do not use any other power supply for the electronic control system,
otherwise damage may occur.
