McHale HS2000 Round Bale Wrapper
26
4.9 Machine re-assembly
When the machine leaves the McHale factory it will normally be “knocked down” to a
greater or lesser extent according to how it is shipped. This section is a description of
how to re-build the machine to working order.Re-assembly takes place as follows:
Lifting the HS2000
Fitting drawbar cylinder
Fitting lighting brackets
Fitting spare film roll holder

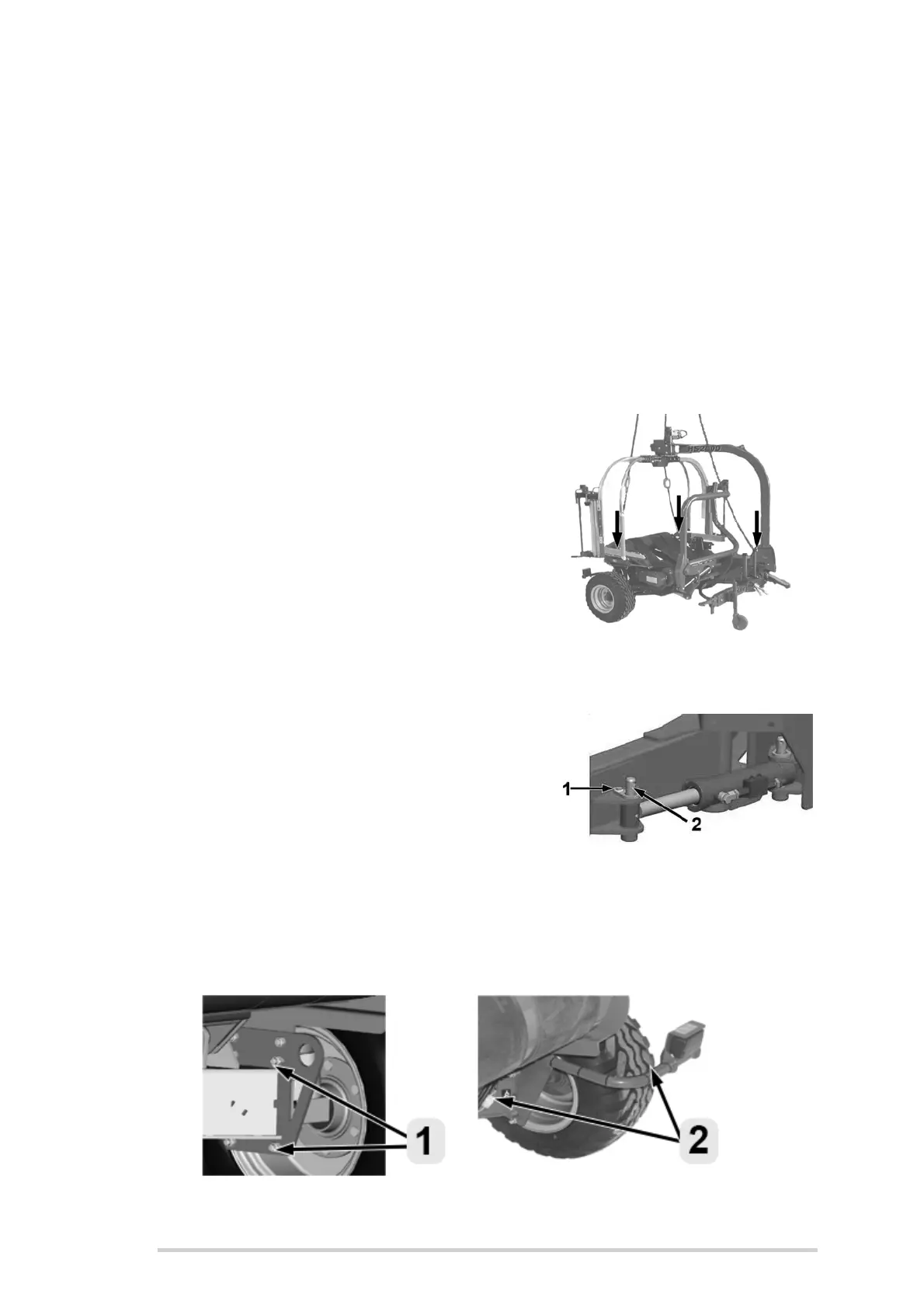

4.9.1 Lifting the HS2000
1. Remove the protective plastic cover from
the machine.
2. Using suitable lifting gear, attach the lifting
chains to the three lifting points on the
machine chassis as shown below.
3. Ensuring that nobody is in the near vicinity
of the crane, take up the slack on the lifting
chains and move the machine to the
desired location.
4.9.2 Fitting drawbar cylinder
1. Swing out the drawbar until it lines up with
the bore on the drawbar cylinder.
2. Secure the drawbar cylinder in place, using
the pin supplied.
3. The pin is secured in position using the
M10 bolt and nyloc-nut supplied, as shown.
4.9.3 Fitting light brackets
1. Attach the light bracket and secure it in place using two 2x M16 bolts that are
supplied.
2. Connect the light’s wiring plugs to sockets on the machine electrical loom.
