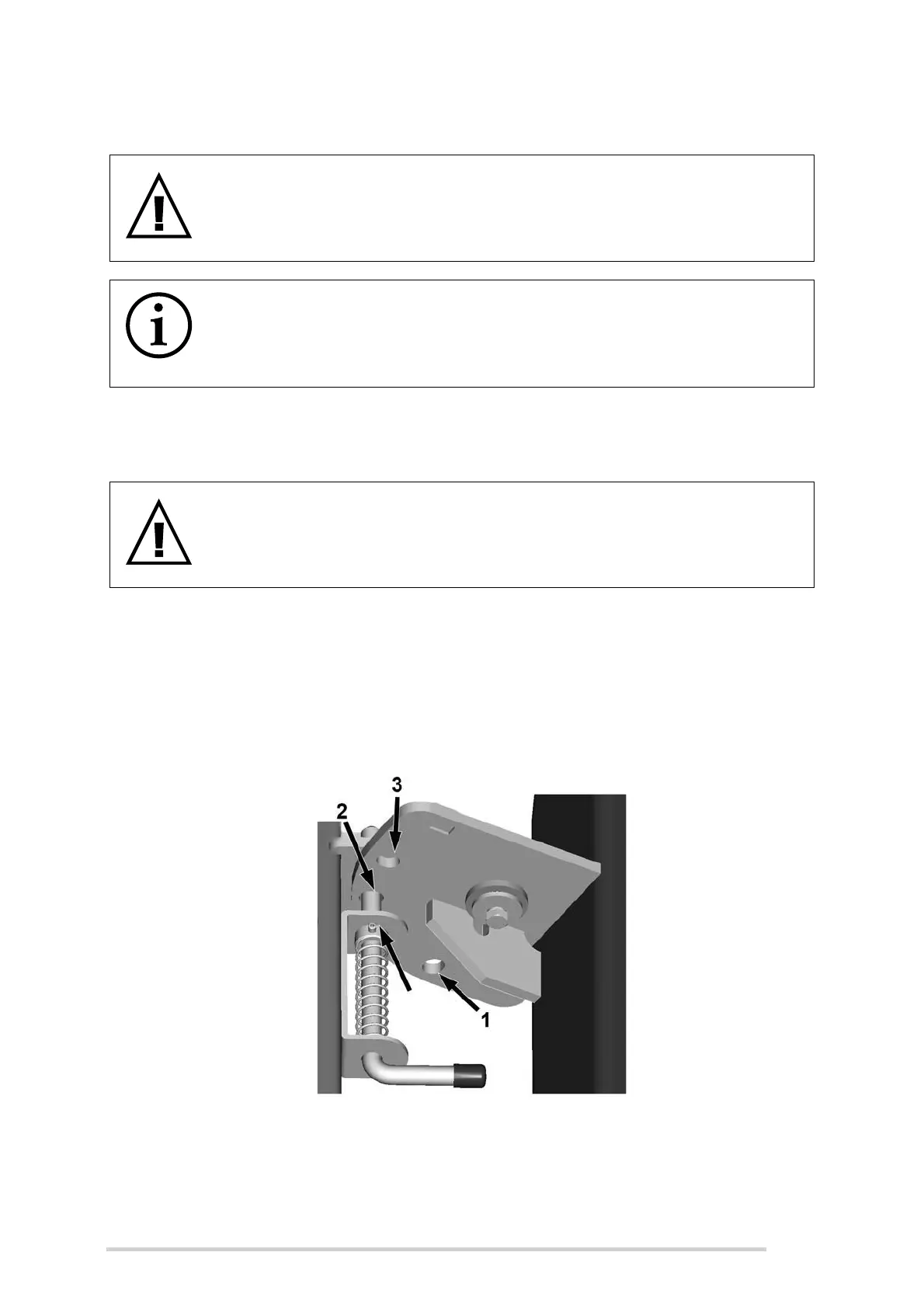

10.12 Operation of film roll holder
See below for location and function for each positional hole:
1. Transport position: Roll holder is fully within width of wrapper.
2. Optional working position: Can be used in this position when in confined
working areas, but be aware of the possibility of poorly shaped bales causing
damage to rolls of film that are carried on the inside holders while bale is being
loaded.
3. Normal working position: Best position for carrying the complete 8 rolls, while
working.
WARNING: Be aware of the location of film roll holder
Operator must always be aware of the location of the film holder as in
any position, other than the transport position, it protrudes out past the
general width of the machine.
NOTE: Always ensure that both springbolts are in the ‘fully home’
position
Ensure that both springbolts are in the ‘fully home’ position (i.e. bush is
against the stop) before moving the machine.
WARNING: While film holder is in transport position
Do not raise or lower the lift arm or activate the ‘Auto Park’ or ‘Auto
Unpark’ while the film holder is in the transport position, otherwise
damage will result
fully
home
Top latch of film roll holder
