40 User Manual for the Meca500 Industrial Robot (for rmware 10.1)
THE MECAPORTAL

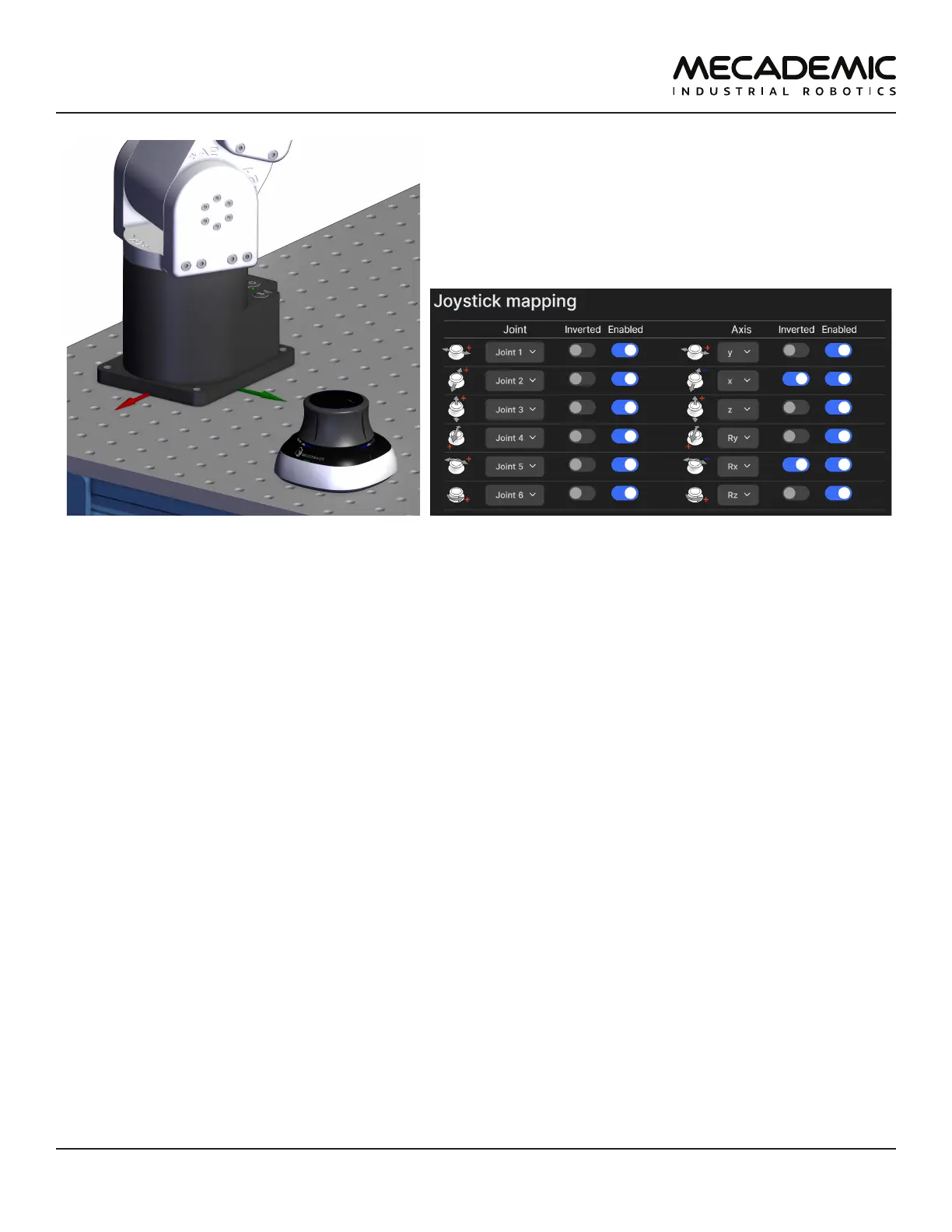

(a) Example of the relative placement of the
SpaceMouse with respect to the WRF
(b) The changes that must be made in the configuration menu
Figure24: Example of conguring the axes of the SpaceMouse
