OPERATING THE SMART POWER SUPPLY
Power Status – A (3)
Power Status – B (11)
Power status indication
Inside power supply
1.6 kΩ, 1W
24 V (DC)
LED
Power Status – A (3)
Power Status – B (11)
Power status indication
Inside power supply
Inside safety PLC
Vcc
ref
input

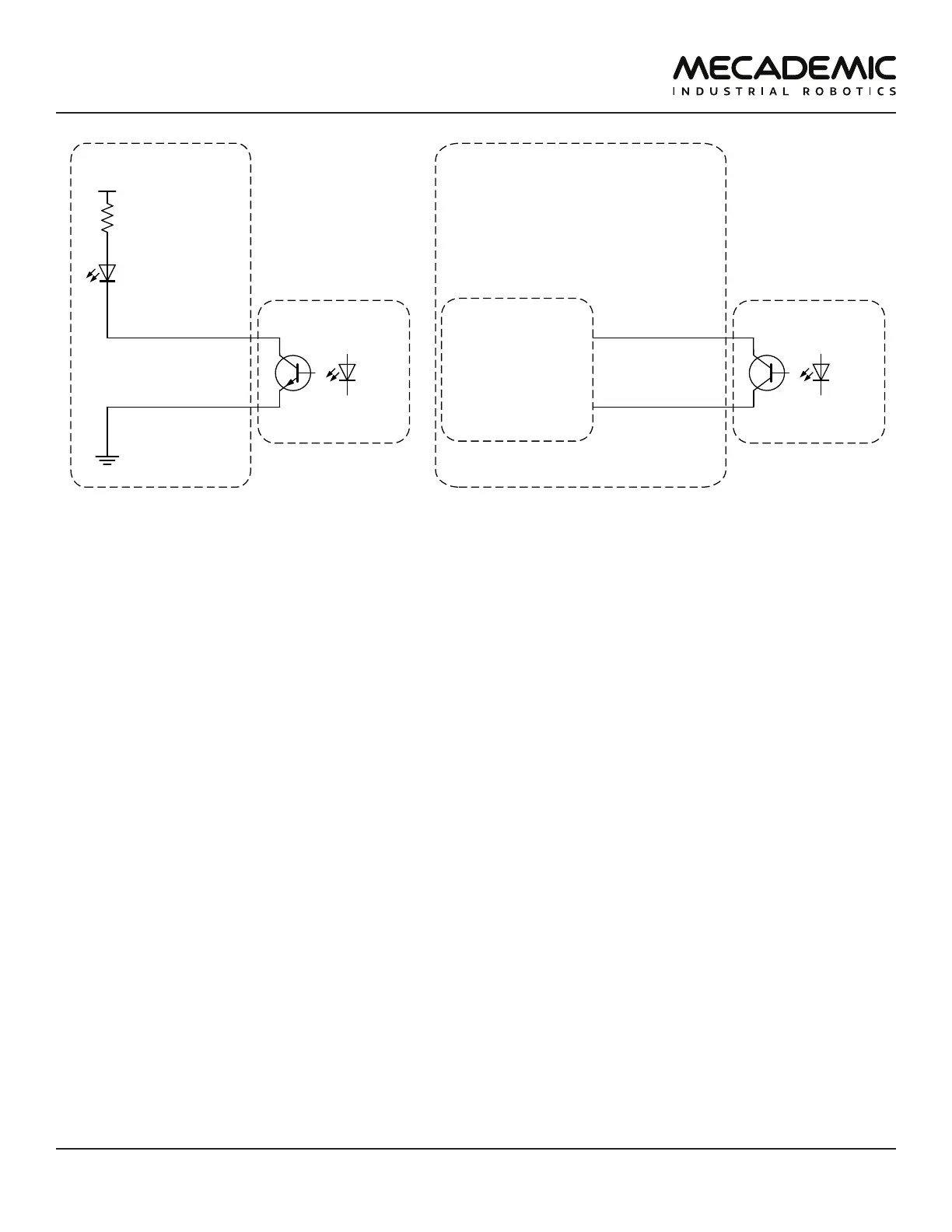

(a) Wiring the power status signal to a LED (b) Wiring the power status to a safety PLC
Figure31: Examples of wiring the power status in the Meca500 R3 and R4
