HELIOS LED Processing Platform - USER GUIDE
2
Processor Overview
The HELIOS Processor is a one RU (1.75”) tall rack mount unit that can receive video in resolutions up to 8K and outputs
that video as a proprietary stream to compatible video panels (Figure 2).
The HELIOS Processor is capable of receiving HDMI, DisplayPort, and SDI signals. The HDMI and DisplayPort inputs are
designed to be modular. Alternate combinations of DisplayPort and HDMI inputs are supported (e.g. two DisplayPort, or
two HDMI). Contact your Megapixel VR representative for more details. SDI inputs are provided by four Megapixel VR
SFP+ units which can receive quad 12G SDI. The default 8K processor conguration consists of (1) x HDMI, (1) x
DisplayPort and (4) x SDI.
The system is congured remotely via a web UI running Chrome or Safari browsers. The input image can be scaled up or
down to suit LED panel congurations and also has all the common controls for brightness, gamma, color temperature,
etc.

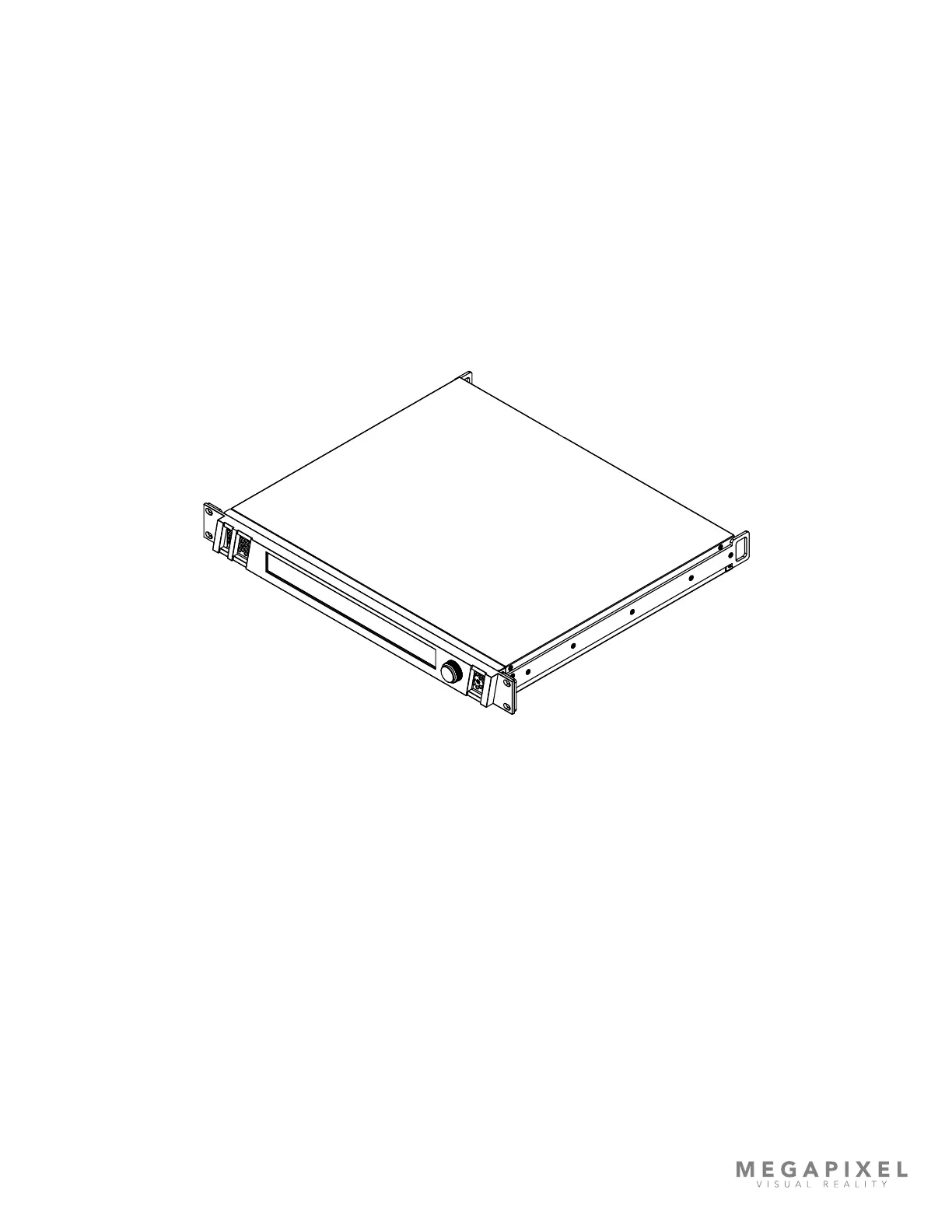

Figure 2: HELIOS Processor.
