HELIOS LED Processing Platform - USER GUIDE 85
Adjustments Pane
The HELIOS Processor can adjust the RGB gains on individual LED modules (there is no full tile option). Gain adjustments
at the LDM level are available if supported by the tile manufacturer and rmware. Select tiles and use the sliders to make
the adjustments. The user interface will tint the tile region to show the color bias assigned to the tile. Shit+click selects
multiple tiles. Alt+click selects individual LDMs (if individual LDM adjustment is supported).

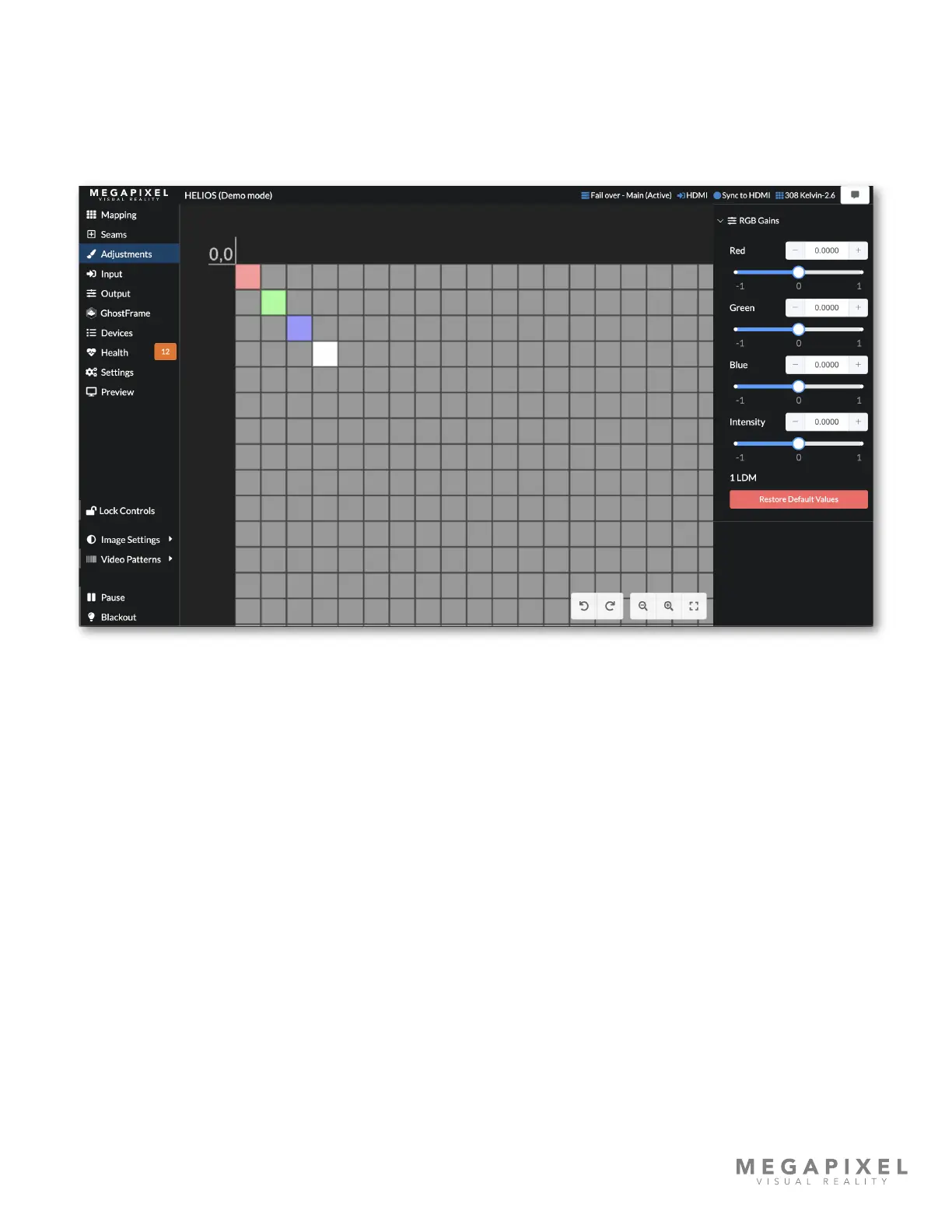

Figure 117: RGB gains Adjustments pane
