Processor Fuse Replacement
The HELIOS Processor has two 3A fuses at the power inlet. To replace these, use a small at head screwdriver to gently pry
loose the fuse tray. Slide the tray out to the limit. Examine and replace fuses as necessary. If blown fuses are a persistent
issue, return the unit to Megapixel VR for repair.

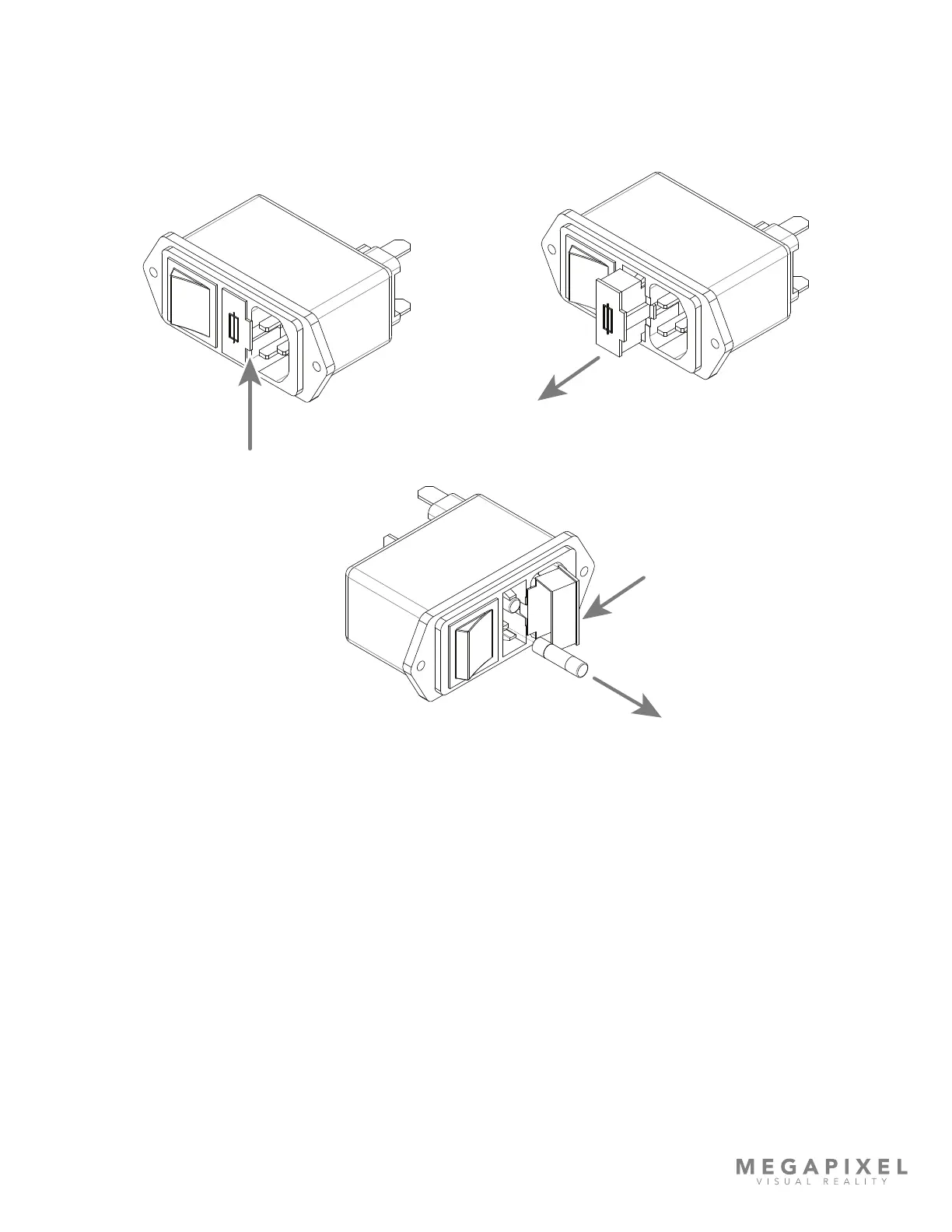

Figure 119: Processor fuse replacement.
