Camera (Advanced)
Without a GhostFrame license, HELIOS will display the Camera pane. The Camera pane is a limited subset of the full
GhostFrame tools. As such, all of the rules and methodology discussed in the previous section of GhostFrame apply to
Camera. The Camera pane is used for aligning camera shutters to colored slices. One video slice and colored slices are
possible, but stills and additional video slices require a GhostFrame license.

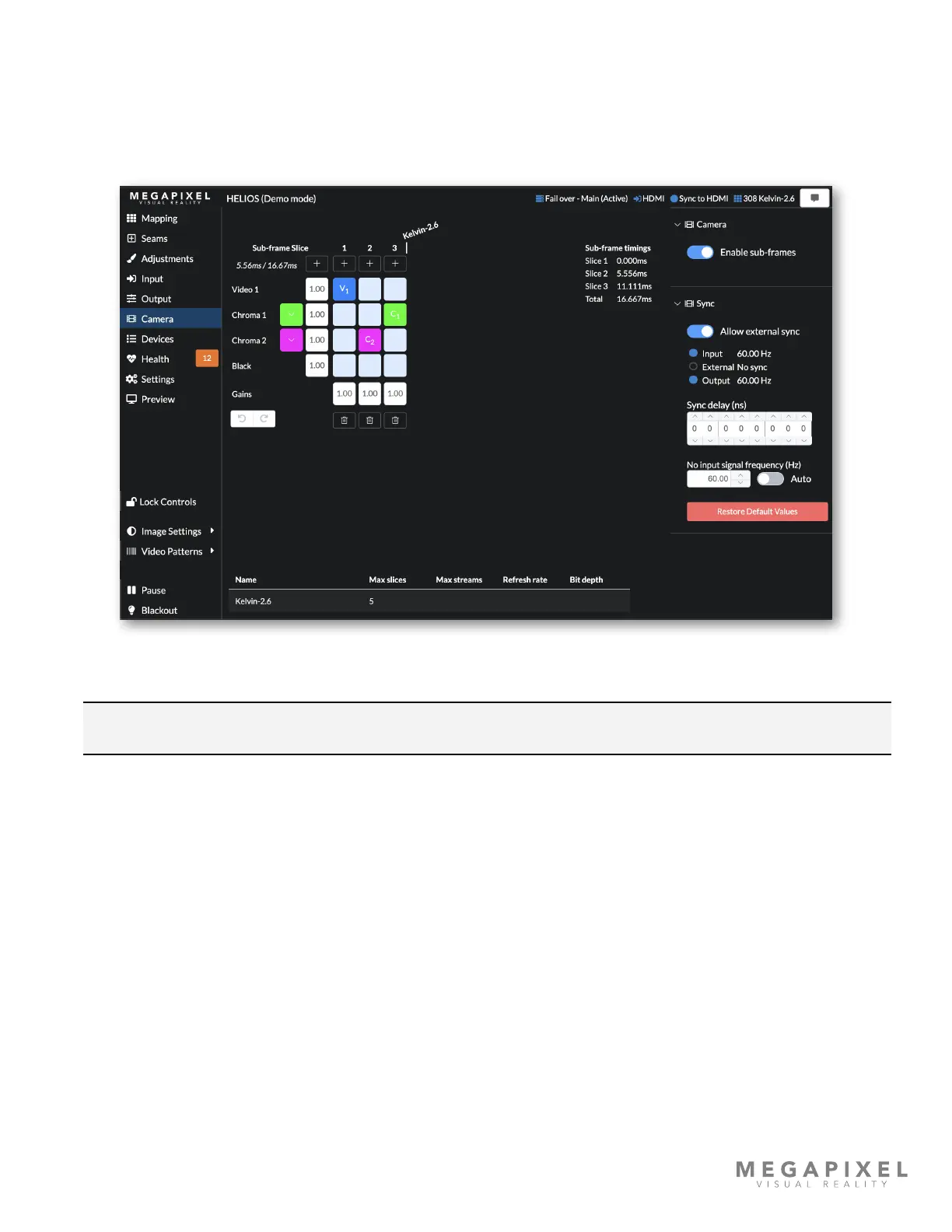

Figure 70: Camera interface
NOTE: Tile test patterns disable Camera. Tile test patterns and tile Identify are mutually exclusive to Camera.
