HELIOS LED Processing Platform - USER GUIDE 53
Below is shown what happens when HELIOS is given two inputs and GhostFrame is set to two (2) streams. The second
stream is offset half way down the canvas, and the second input is also placed in the second half of the canvas. This results
in V1 showing content from the rst input and V2 showing content from the second. All of this happens in the background
and allows the HELIOS to use one canvas to interleave multiple video streams.

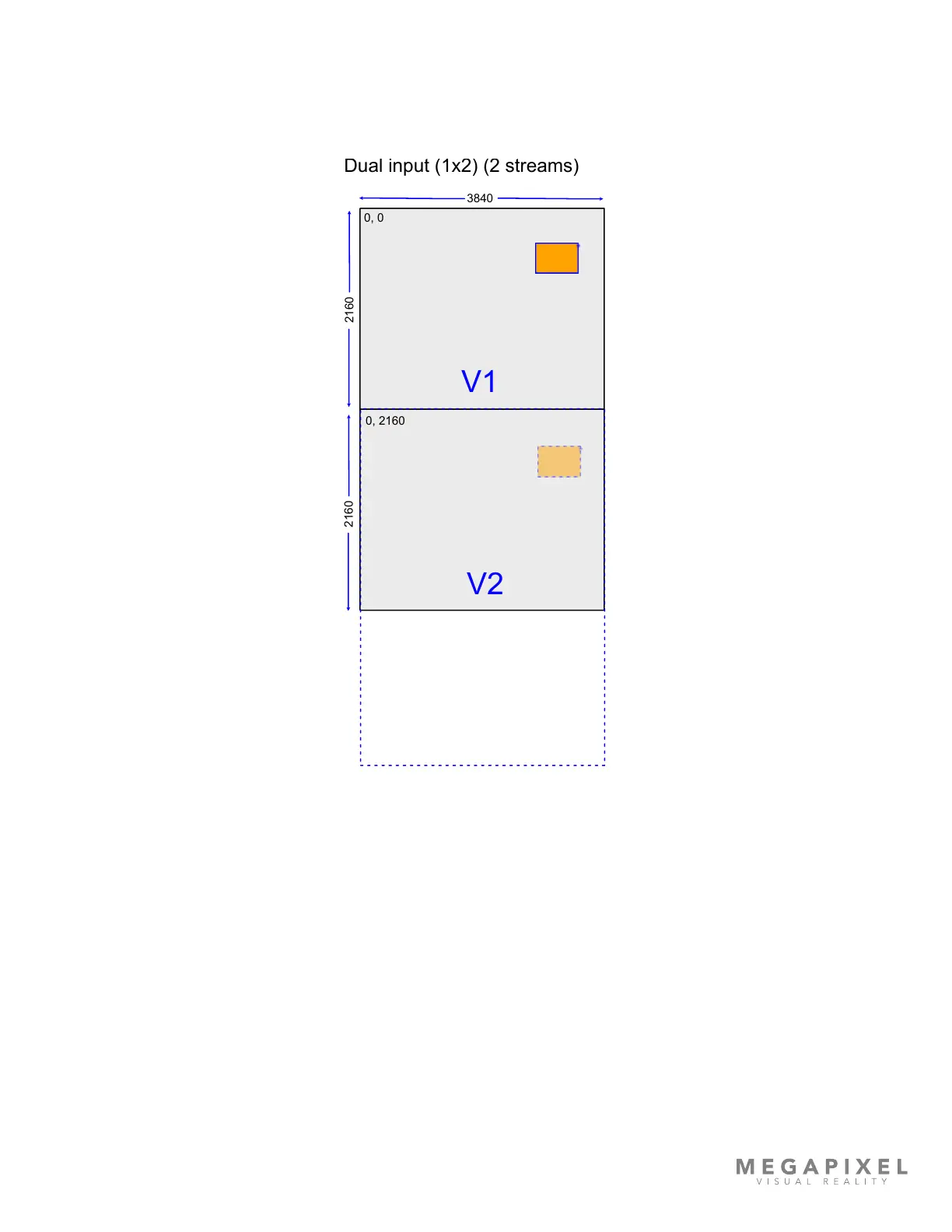

Figure 69: Dual inputs two streams
V2
V1
3840
0, 0
0, 2160
2160
2160
Dual input (1x2) (2 streams)
