Devices Pane
The Devices pane is a dynamic list of all connected system devices. The information is split into two tabs, a Processing tab
and a Display Devices tab. This pane is usually the rst place a system technician will check to discover the status of a
system.
Processing Tab
Divided starting at the top with information for the HELIOS Processor(s) followed by Network Switches.

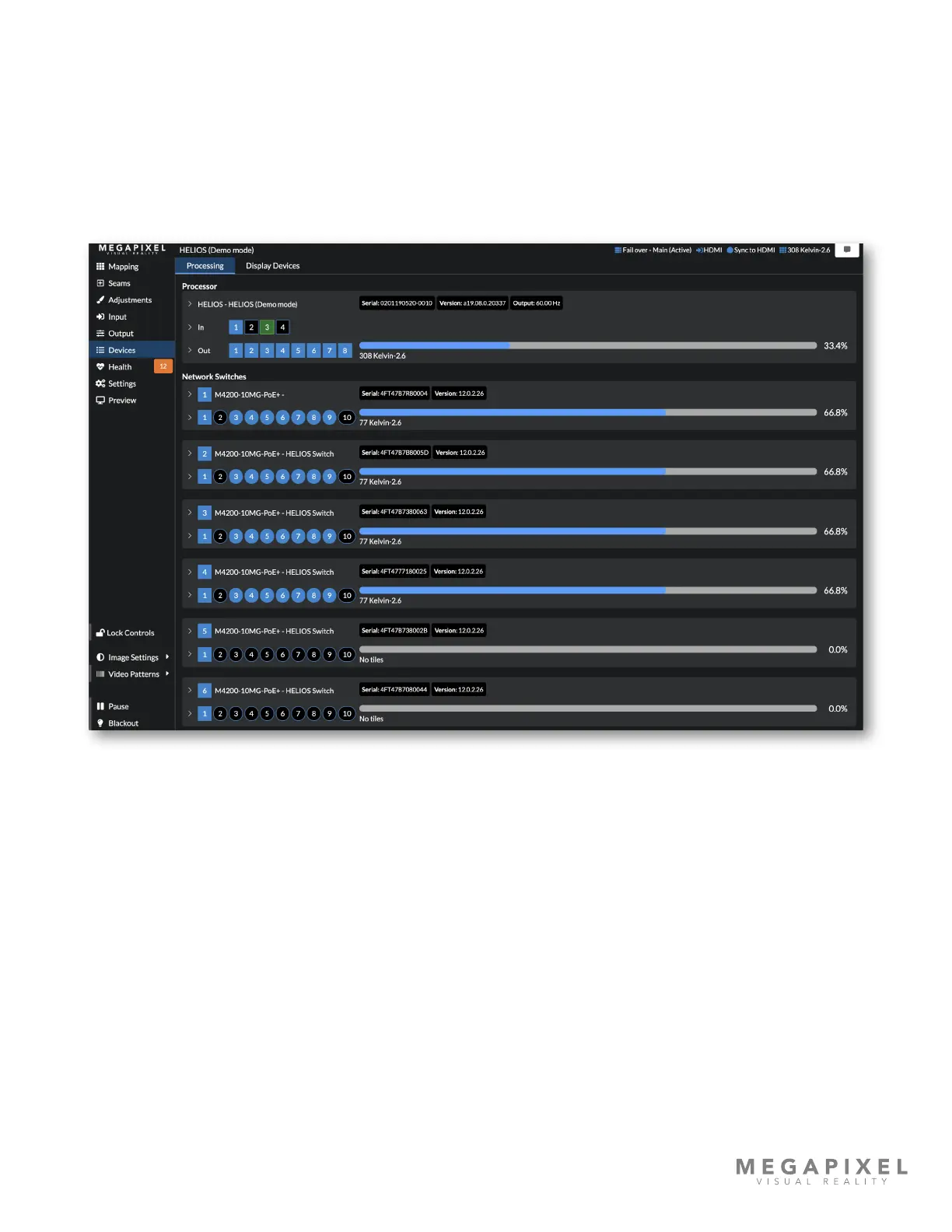

Figure 71: Devices pane
