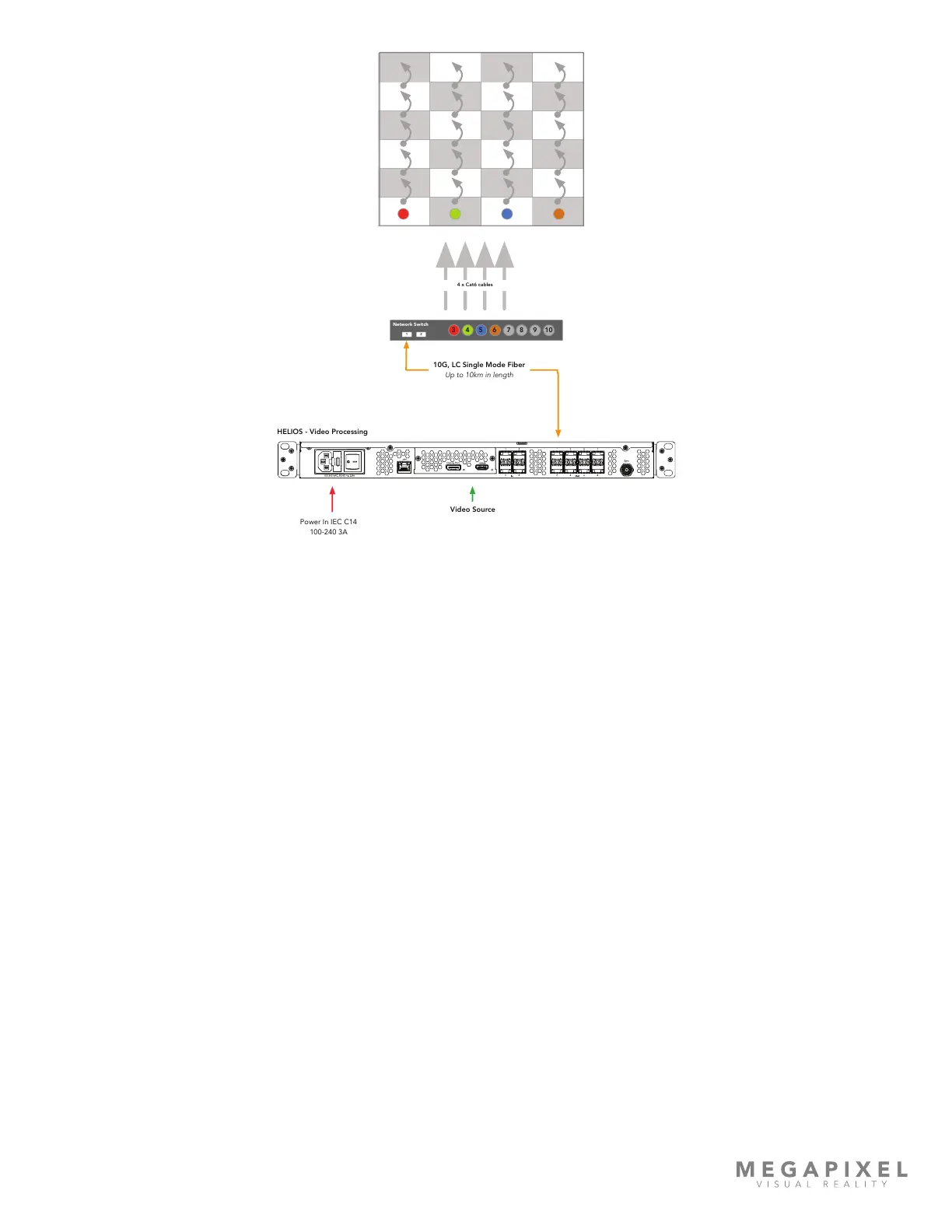

Figure 11: Example data distribution drawing
Cable infrastructure - Check that the types of cables chosen are appropriate for the display type and for the location. This
is the point at which site specic considerations need to be made.
Important items to check:
• Where will the video source device reside?
• Is the HELIOS Processor close enough to the video source device to be within the specication of the video protocol
being used (e.g. HDMI, DisplayPort, and SDI).
• Is there power for the HELIOS Processor at the location?
• Has power for the network switches been allotted?
• What is the distance from the HELIOS Processor to the network switches at the display? Is this under the 10km
specication of the single-mode ber?
• What is the distance from the network switch to the rst panel in the display that each drives? Is this under the 100
meter limit of the copper Ethernet signal?
Network Switch
1
2
4 5
6 7
83
9 10
Video Source
Power In IEC C14
100-240 3A
HELIOS - Video Processing
10G, LC Single Mode Fiber
Up to 10km in length
4 x Cat6 cables
