HELIOS LED Processing Platform - USER GUIDE
12
Processor Connections (continued)
Output Signal to Displays - The output ports of the HELIOS Processor broadcast HELIOS video and control data over LC-
LC, 9/125 Single mode (SMF) OS1 (<=1000m) or OS2 ber to network switches, which in turn send the data on to the
display devices via copper cables.

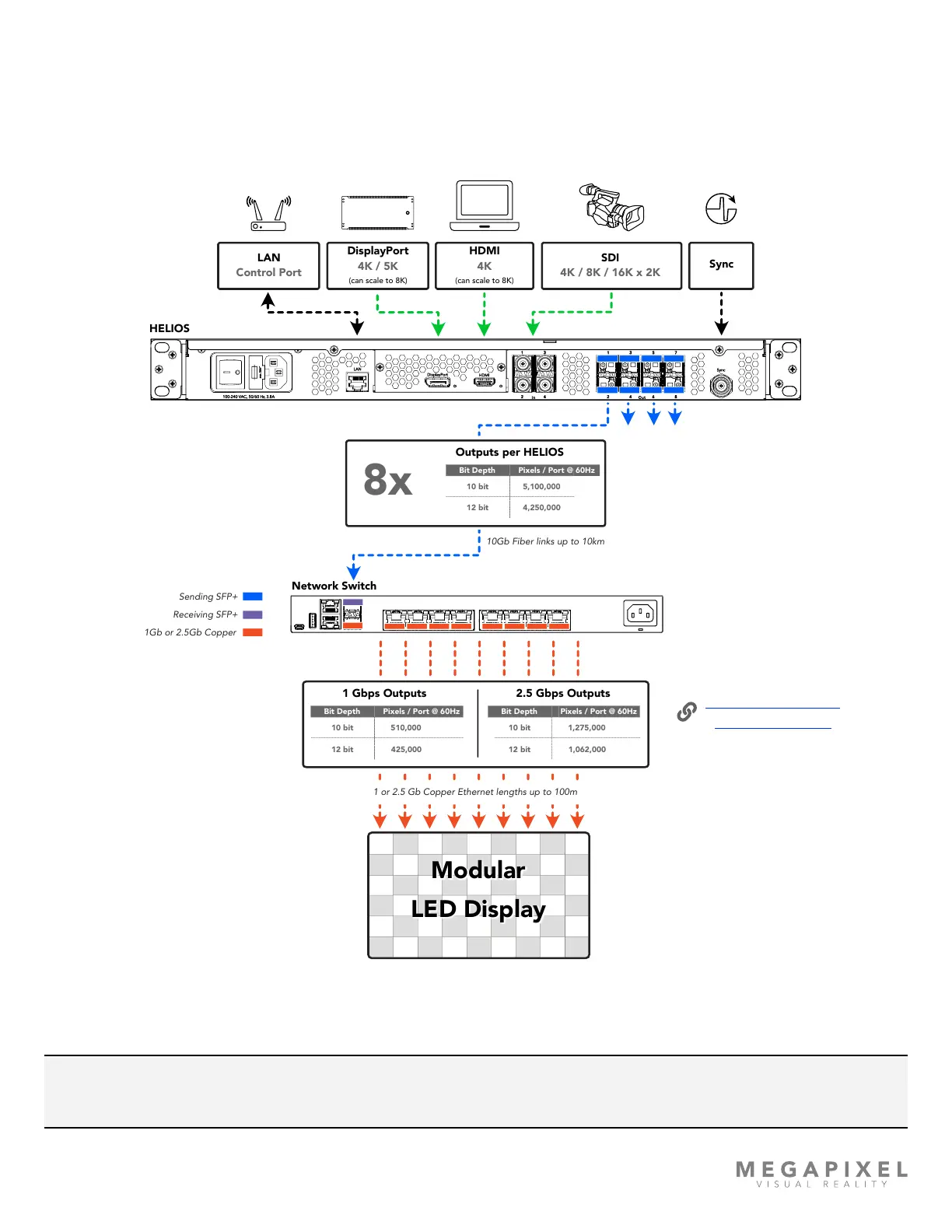

Figure 12: System diagram.
NOTE: For convenience or compatibility with wireless-only devices such as tablets, a wireless router can be attached
to the HELIOS LAN control port.
Modular
LED Display
1 Gbps Outputs 2.5 Gbps Outputs
12 bit 12 bit425,000 1,062,000
Pixels / Port @ 60Hz Pixels / Port @ 60Hz
10 bit 10 bit510,000 1,275,000
Bit Depth Bit Depth
HELIOS
Sync
Network Switch
LAN
Control Port
DisplayPort
4K / 5K
(can scale to 8K)
SDI
4K / 8K / 16K x 2K
HDMI
4K
(can scale to 8K)
Outputs per HELIOS
12 bit 4,250,000
Pixels / Port @ 60Hz
10 bit 5,100,000
Bit Depth
1 or 2.5 Gb Copper Ethernet lengths up to 100m
10Gb Fiber links up to 10km
8x
Receiving SFP+
1Gb or 2.5Gb Copper
Sending SFP+
Jump to the port capacity
table for more details.
