HELIOS LED Processing Platform - USER GUIDE 17
Web UI
The web UI contains all of the other controls that are needed for setting up a display system. The web UI congures the
HELIOS Processor for the various supported video panels and provides controls to the input and output signal parameters
such as selection of source, position and color.
In the previous chapter on Networking this guide discusses the necessary settings to both the HELIOS Processor and the
device that is to be used as the web UI host. Having congured these settings correctly is a prerequisite. The web UI will
not be accessible if this has not been done. The HELIOS web UI runs remotely on any device capable of supporting
Chrome or Safari web browsers. Shown below is the mapping pane of the HELIOS web UI.

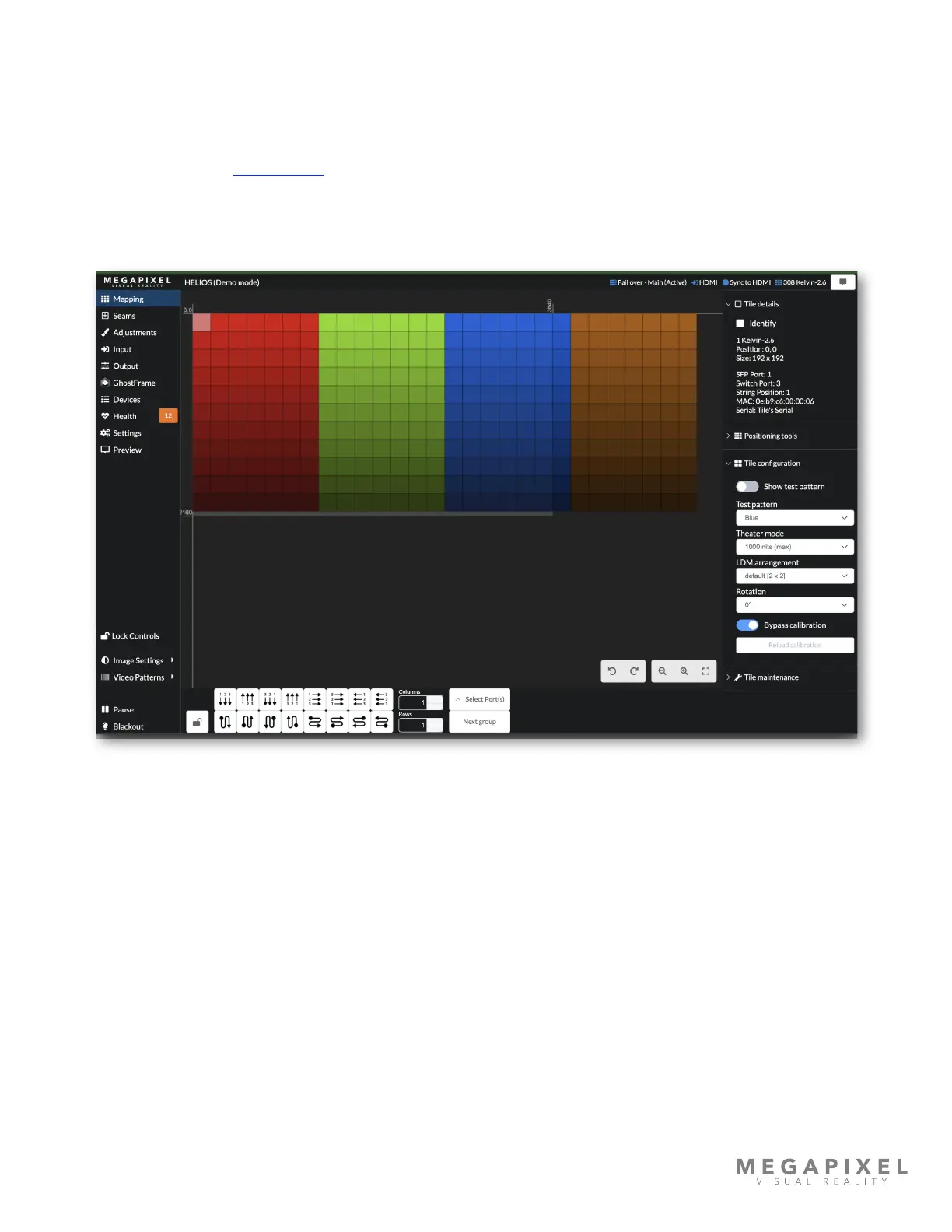

Figure 16: HELIOS web UI.
