HELIOS LED Processing Platform - USER GUIDE
40
Display bit depth
The system can operate at 10 bit or 12 bit. This menu controls the current setting and shows per-port bandwidth percent
utilization. 12 bit operation is recommended. Selecting 10 bit operation will reduce bandwidth utilization.

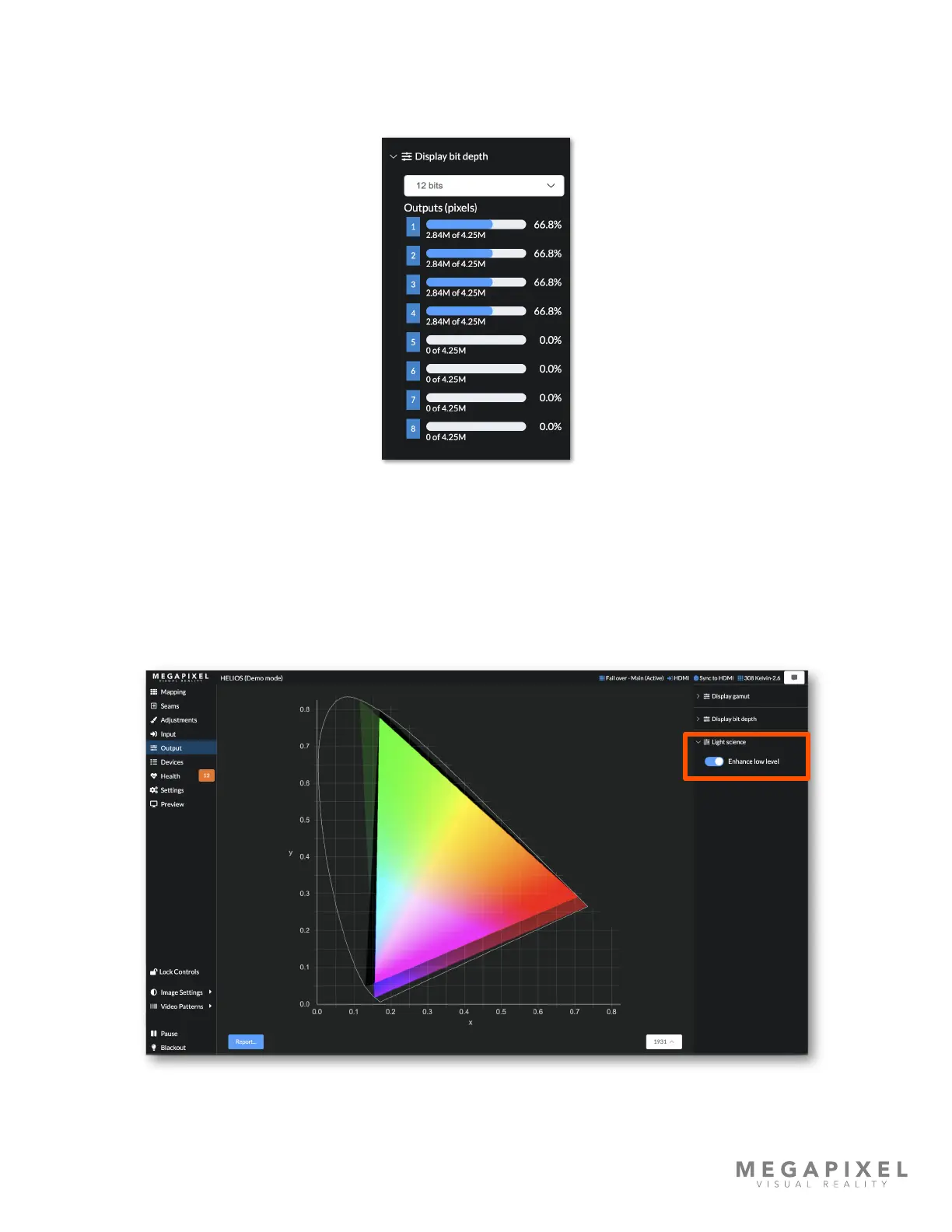

Figure 51: Display bit depth
Light science
Low light levels can be challenging for LED displays. Banding can appear in low light level, smooth gradients as tiles
struggle to reproduce the low light level signal. HELIOS can improve the visual appearance of these dark regions by
expanding the bit depth in the video signal. HELIOS normally uses 10 or 12 bits per color, but with Light science enabled,
it will increase the bits per color to 22 (default) or as high as 32 effectively smoothing low light level banding.
Figure 52: Light Science
