HELIOS LED Processing Platform - USER GUIDE 81
Preview Pane (continued)
With either of the Quad SDI (SDI 1x4 or SDI 2x2) input options selected, the Preview pane stitches the four SDI feeds
together.

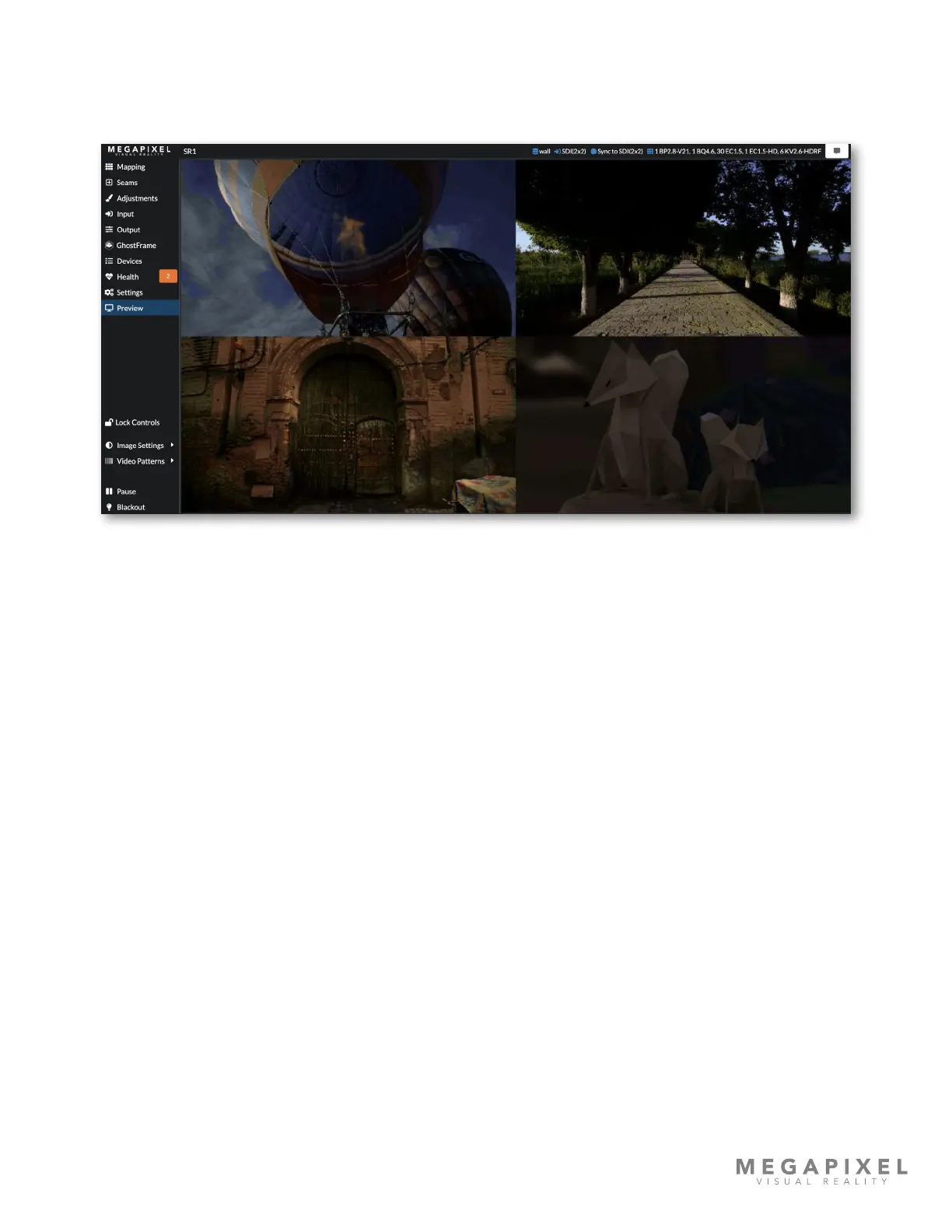

Figure 112: Preview pane - Quad SDI
