1.5 Product components
1: Enclosure 2: Encoder board 3: Control box 4: Keypad 5: Expansion box 6: Rubber plug
7: Upper cover 8: Wire fixation bracket 9: Grounding board 10: Fan cover 11: Fan 12: Dustproof plate

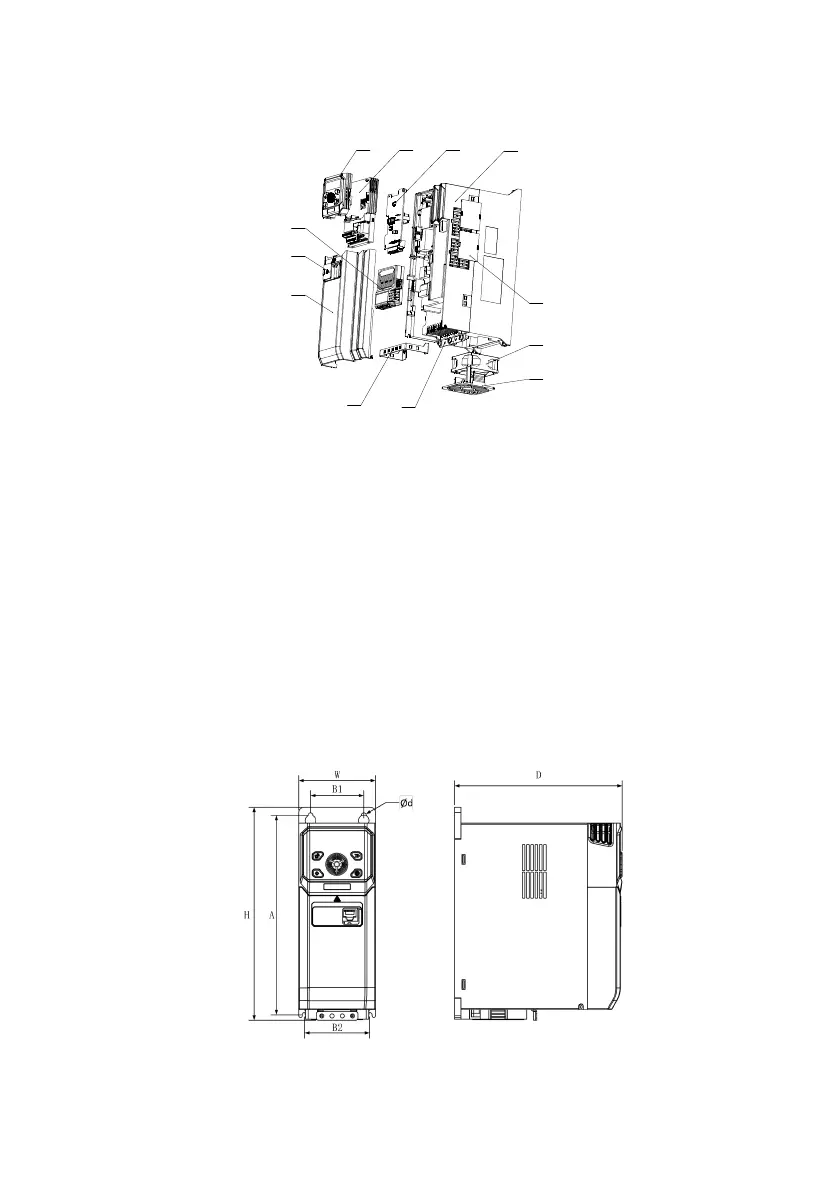

Fig. 1-1 Part of components (taking enclosure B as an example)
1.6 Product dimensions
There are five types of outline dimensions as shown in Fig. 1-2, Fig. 1-3, Fig. 1-4, Fig. 1-5 and Fig. 1-6. The specific outline
dimensions, mounting dimensions and gross weight are shown in Table. 1-3. The drawings are only for illustration. For
details, check your actual products.
(1) Enclosure B: 2S0.4 kW to 2.2 kW
2D0.4 kW to 2.2 kW
4T0.4 kW to 4T3.7 kW
2T2.2 kW
Fig. 1-2 Enclosure B
