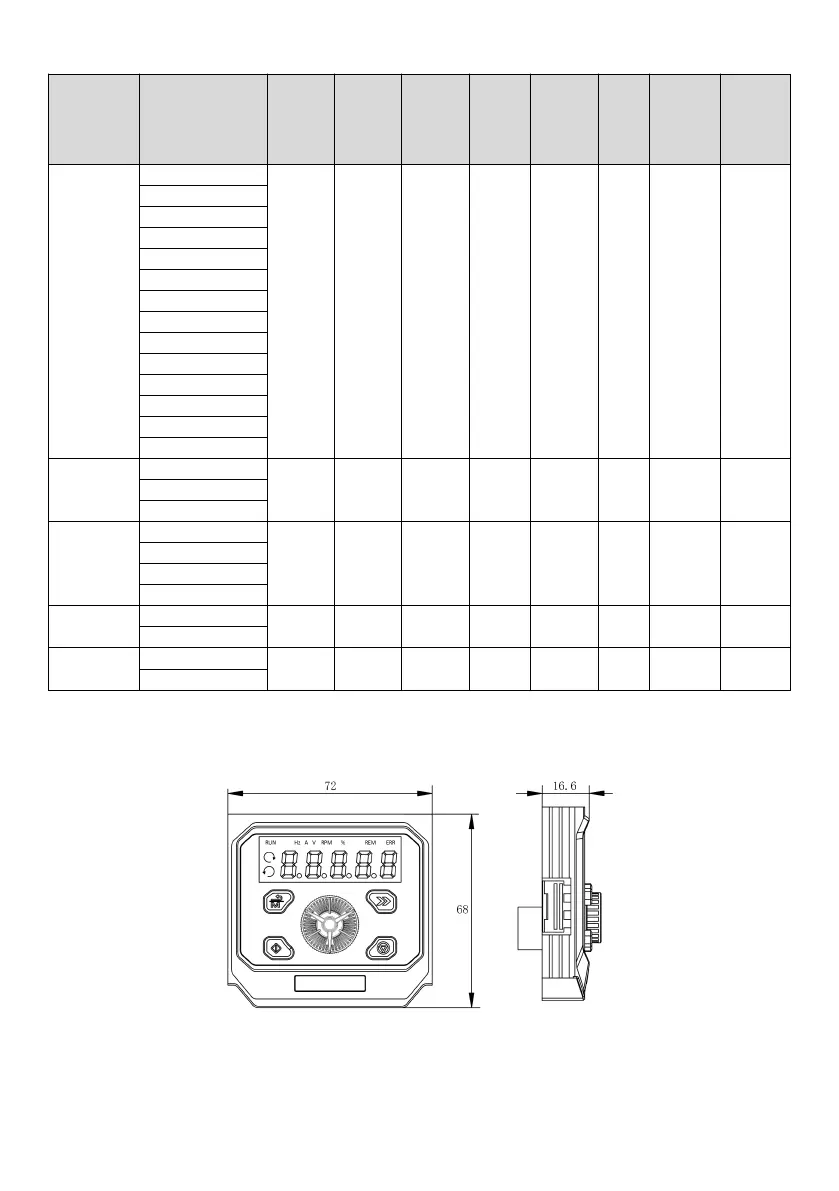

Megmeet MV820 - Operating Panel Dimensions

17
Enclosure
model
Drive model
A (mm)
B1 (mm)
B2 (mm)
H (mm)
W (mm)
D
(mm)
Mounting
hole
diameter
(mm)
Gross
weight±
0.5 (kg)
Enclosure B
MV820G1-2S0.4B
187.5
50
61
200
72
158.5
4.5
1.4
MV820G1-2S0.75B
MV820G1-2S1.5B
MV820G1-2S2.2B
MV820G1-2D0.4B
MV820G1-2D0.75B
MV820G1-2D1.5B
MV820G1-2D2.2B
MV820G1-4T0.4B
MV820G1-4T0.75B
MV820G1-4T1.5B
MV820G1-2T2.2B
MV820G1-4T2.2B
MV820G1-4T3.7B
Enclosure C
MV820G1-2T3.7B
259
97.5
97.5
267
115
171
5
2.5
MV820G1-4T5.5B
MV820G1-4T7.5B
Enclosure D
MV820G1-2T5.5B
290
118
118
300
138
195.92
6
4.1
MV820G1-2T7.5B
MV820G1-4T11B
MV820G1-4T15B
Enclosure E
MV820G1-4T18.5B
318
140
140
330
158
204.8
6
-
MV820G1-4T22B
Enclosure F
MV820G1-4T30B
412
196
196
424
220
229
7
15
MV820G1-4T37B
1.7 Operating panel dimensions
