2.2.3 Reinforced metal bottom plate
MV810-METB, MV810-METC and MV810-METD are reinforced metal bottom plates corresponding to enclosures of B, C
and D. They can reinforce the drive in corrosive environments with high temperature and oil mist. They can be installed
through the countersunk head screws included in the accessory package, as shown in the following figure (marked in
green).

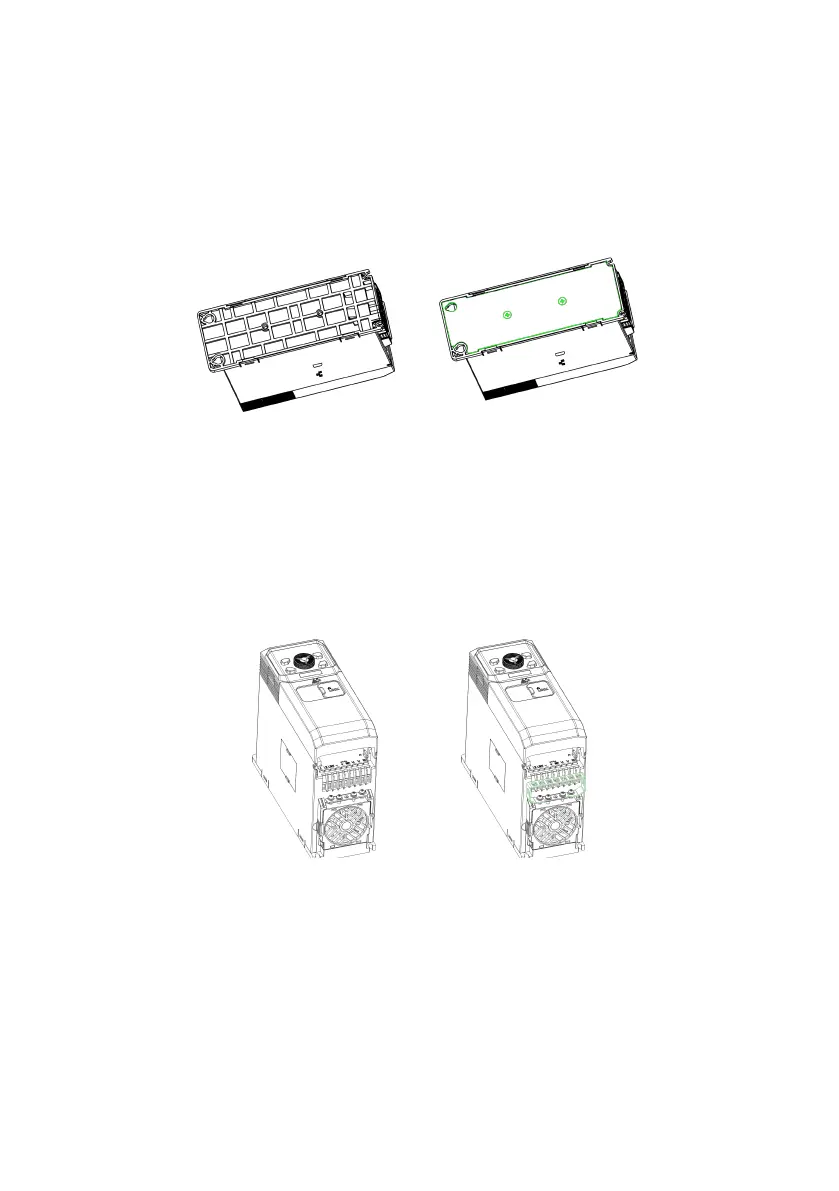

Fig. 2-20 Reinforced metal bottom plate
2.2.4 Wire fixation bracket
MV810-FIXB，MV810-FIXC，MV810-FIXD are brackets for wire management corresponding to enclosures of B, C and D.
The brackets are used for re-fixing input and output wires in order to protect terminals from excessive stress or external
impact, and also for stable grounding of the cable shield. They are fixed to the screws on the grounding plate (marked in
green), as shown in the following figure.
Fig. 2-21 Wire fixation bracket
2.2.5 Guide rail bracket
MV-DIN3563 (only for enclosure B) is a bracket for guide rail installation, with a mounting hole distance of 63 mm, fit for
the standard DIN 35 mm guide rail. Fix it to the bottom of a drive, and then fix the drive to a guide rail. The M4*25
countersunk head screws included in the accessory package are used for installation. See the following figure (marked
in green).
