Megmeet MV820 - MV810-PG01: Simple Incremental ABZ Encoder Card

36
Support output polarity and switch-on/off delay, see 4.2.2.6 for wiring details.
24 V, GND
Power output: +24 V
DC
, ±5%, < 200 mA
2.1.5.3 Installation
Accessory list
Accessory list
Specifications
Number
MV810-IO01
75 × 60 × 24 mm
1
User manual
A4 × 1
1
For installation, refer to “2.1.1 Installation of accessory cards/options” for details.
2.1.6 MV810-PG01: simple incremental ABZ encoder card
MV820 supports simple incremental PG card expansions, and you should pay attention to the drive model you ordered;
and also, you can order expansion cards individually.
See 4.2.2.7 for the wiring details of simple incremental PG cards.
2.1.6.1 Function description
MV810-PG01 speed measurement card is an accessory card of MV820 series, which provides encoder interfaces,
supports differential ABZ input and open-collector input, and serves as the speed or position feedback.
2.1.6.2 Product appearance
1
1
1
2
3
1：定位孔
2：接线端子台
3：连接变频器接口

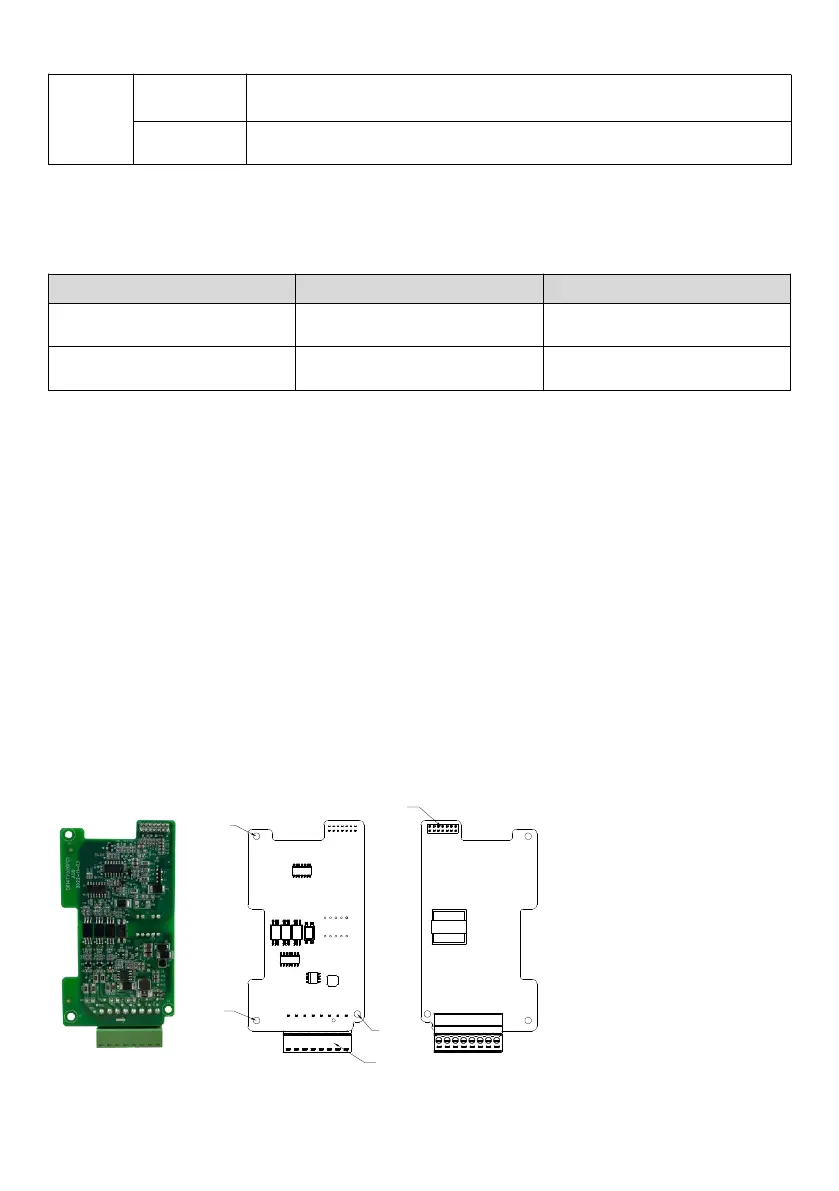

Fig. 2-13 Appearance, components and terminals
1: Positioning hole
2: Connection terminal block
3: Interface connected to drive
