3.2 Installation environment
To choose the installation place, follow the below instructions:
Ambient temperature: -10℃ to 50℃, derating required if the ambient temperature is 40℃ to 50℃;
Ambient humidity: 5% to 95% RH, non-condensing;
Install the product in a place with the vibration less than 5.9 m/s
2
(0.6g);
Do not install the product in a place with direct sunlight;
Do not install the product in a place with dust or metal powder;
It is strictly forbidden to install the product in a place with corrosive and explosive gases.
If you have any special installation requirements, consult us before installation.
3.3 Installation direction and gap
It is recommended to install the product vertically for better ventilation.

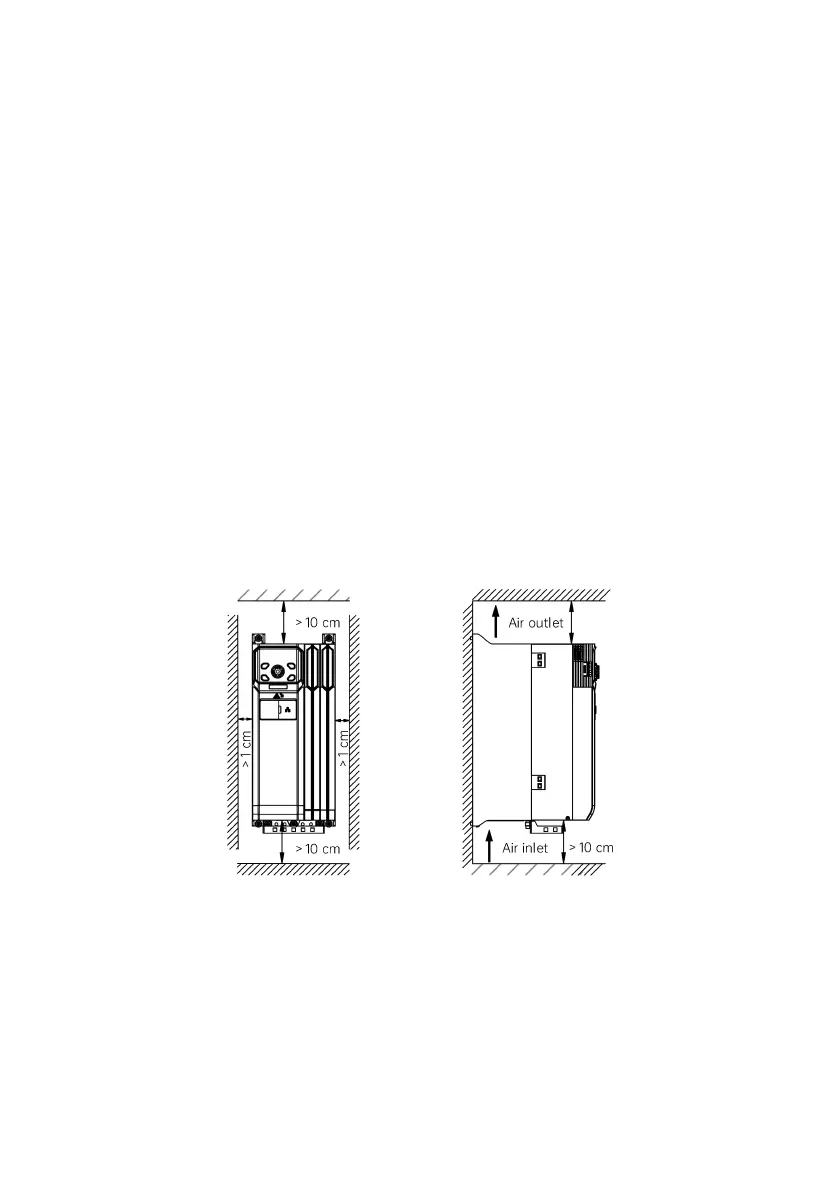

The specific gap distance is shown in Fig. 3-2.
Fig. 3-2 Gap distance for vertical installation
Besides the installation through screws, MV820 Size A/B also support installation through a guide rail (needs to operate
with a guide rail bracket, referring to 2.2.5), as shown in Fig. 3-3.
