2.1.3 MV810-ECAT01: EtherCAT communication option
2.1.3.1 Product appearance

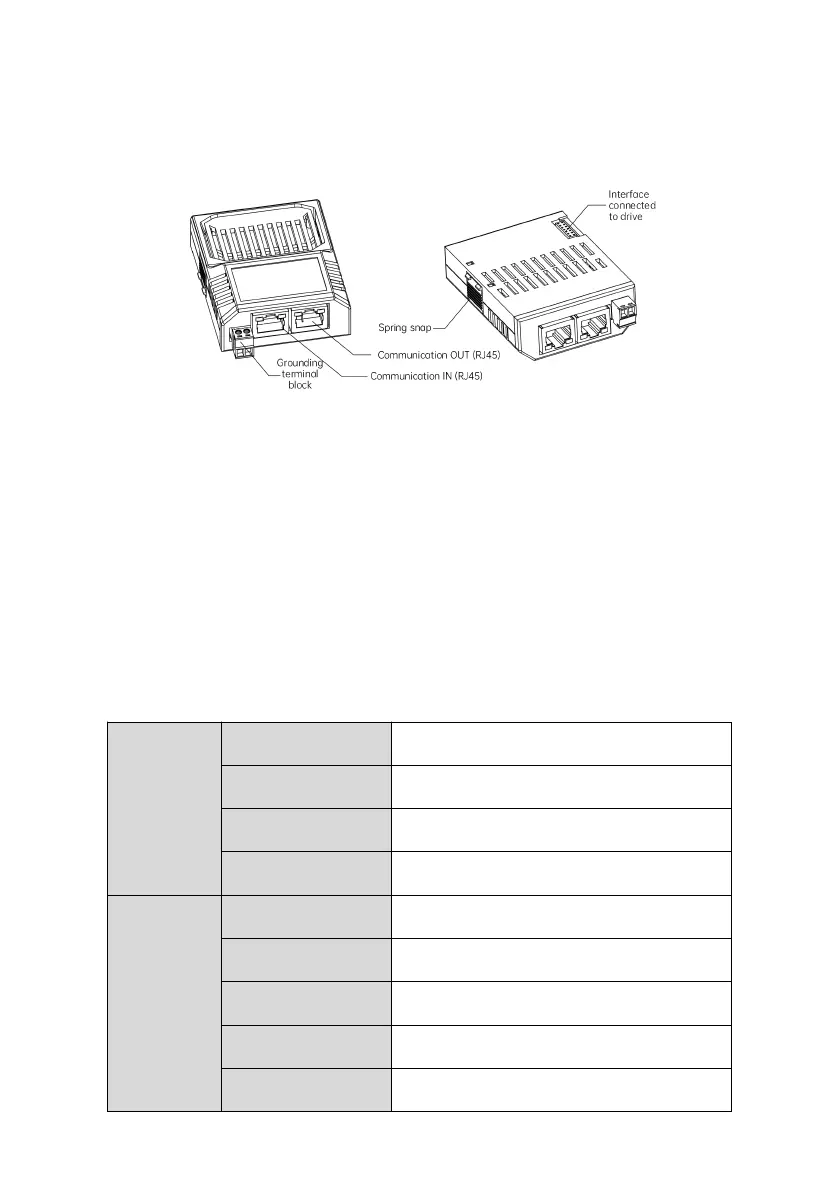

Fig. 2-8 Components and terminals
2.1.3.2 Function features
(1) Supports PDO and SDO services
(2) Supports access of drive parameters through SDO
(3) Supports 100 Mbps full duplex
(4) Supports the speed mode
2.1.3.3 Technical specifications
EtherCAT
connector
Interface
Two RJ45 (IN, OUT)
Transmission mode
High-speed bus
Transmission media
CAT5 shielded twisted pair cables
Galvanic isolation
500 V DC
Communication
Network standard
EtherCAT
Transmission protocol
100 BASE-TX (IEEE 802.3)
Transmission distance
100 m
Bus transmission speed
10/100 Mbps Auto-Defect
Module name
MV810-ECAT01
