Megmeet MV820 - Page 28

28
XML file
MV800_ECAT_CoE_9252_V1.00.xml
SDO
SDO request, SDO response
PDO
Variable PDO mapping
Electrical
specifications
Power voltage
3.3 V DC (provided by the drive)
Insulation voltage
500 V DC
Power consumption
1 W
Weight
25 g
Environment
specifications
Noise immunity
ESD (IEC 61800-5-1, IEC 6100-4-2)
EFT (IEC 61800-5-1, IEC 6100-4-4)
Surge Test (IEC 61800-5-1, IEC 6100-4-5)
Conducted Susceptibility Test (IEC 61800-5-1, IEC
6100-4-6)
Operating/Storage
environment
Operating: -10 to 50℃ (temperature), 90% (humidity)
Storage: -25 to 70℃ (temperature), 95% (humidity)
Vibration/Shock
resistance
GB 4798.3-2007, GB 12668.501—2013/
IEC 61800-5-1 (IEC 60068-2-6)

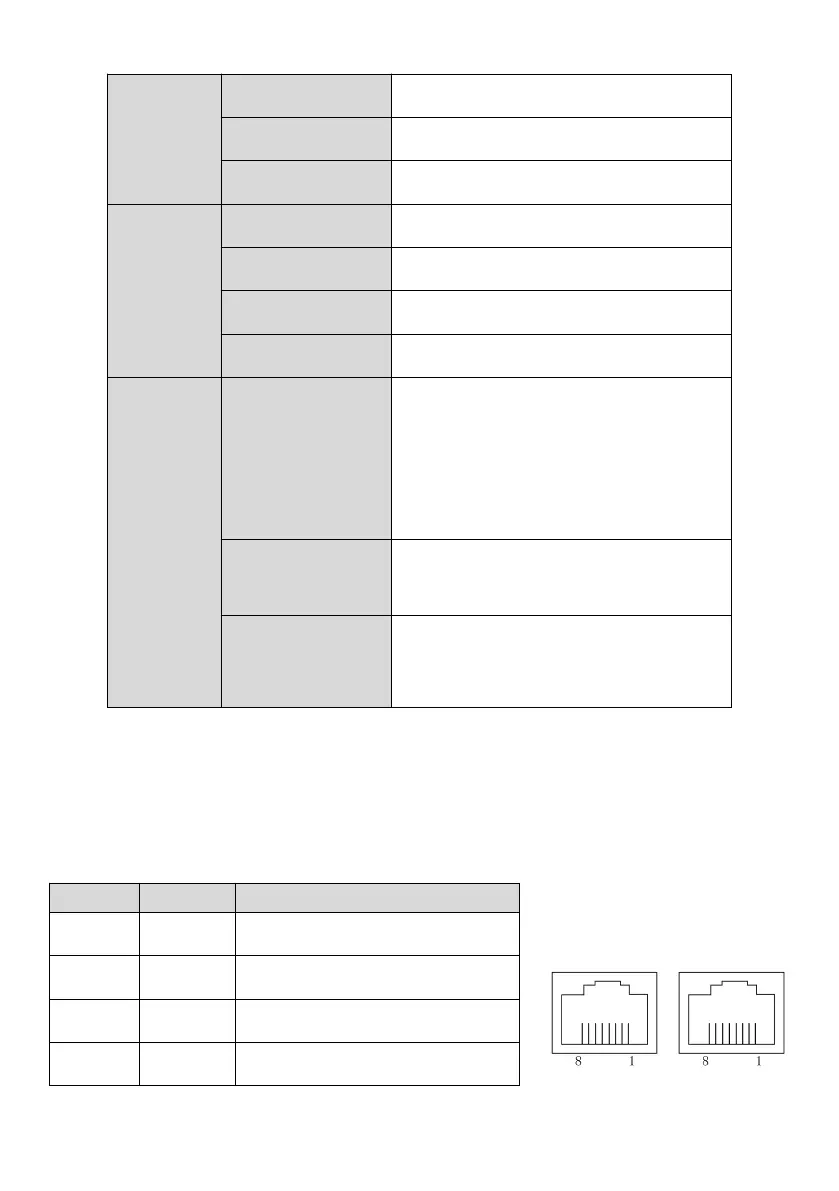

2.1.3.4 Pin definitions
EtherCAT adopts the standard RJ45 port. This communication option has 2 RJ45 ports: IN and OUT. IN is the data input
port and OUT is the data output port. The ports and pin definitions are as shown in the below figure and table.
Pin definitions of the MV810-ECAT01 connector:
Pin
Name
Description
1
TX+
Transmit Data+
2
TX-
Transmit Data-
3
RX+
Receive Data+
4
n/c
NOT CONNECTED
