2.1.2 MV810-PNET01: PROFINET communication option
2.1.2.1 Product appearance

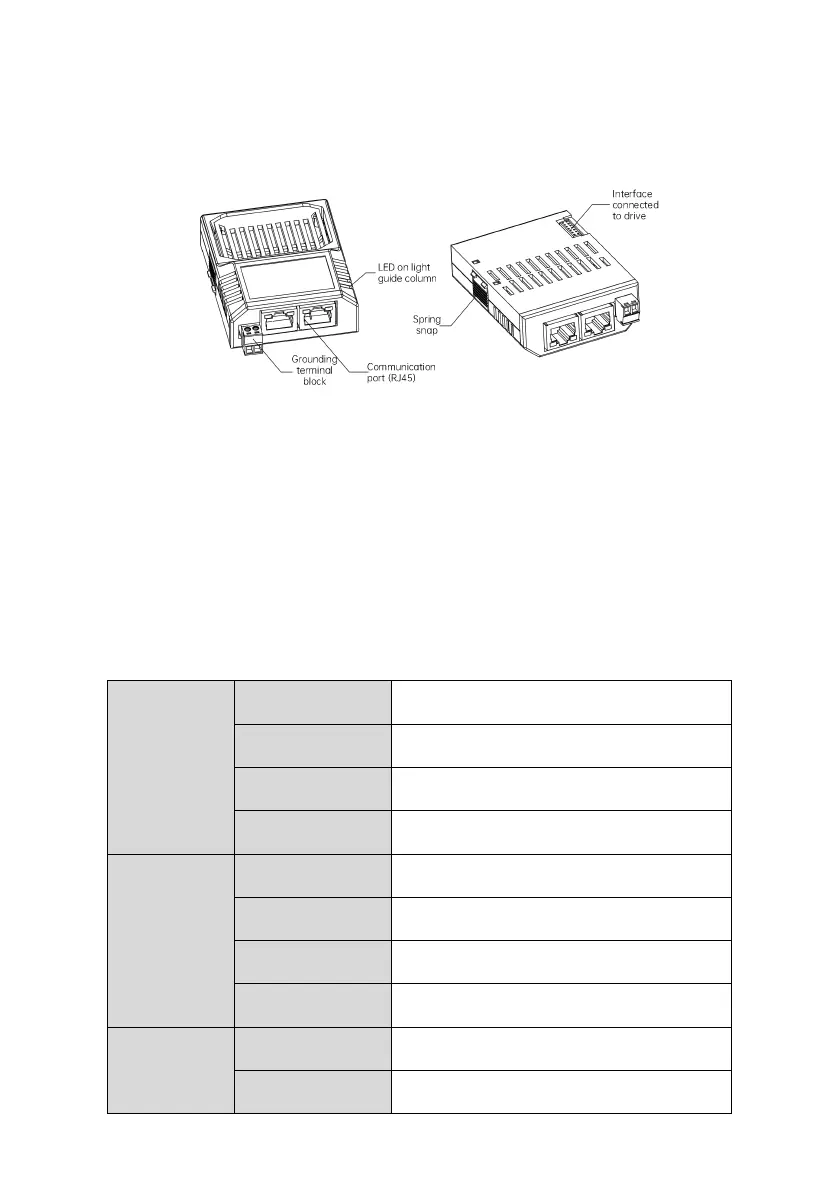

Fig. 2-7 Components and terminals
2.1.2.2 Function features
(1) Supports process data transmission through PZD
(2) Supports access of drive parameters through PKW
(3) Supports 100 Mbps full duplex
2.1.2.3 Technical specifications
PROFINET
connector
Interface
Two RJ45
Transmission mode
High-speed bus
Transmission media
CAT6 Ethernet cable
Galvanic isolation
500 V DC
Communication
Transmission type
Cyclic data transmission
Module name
MV810-PNET01
GSDML file
GSDML-V2.32-megmeet-mv800.xml
Bus transmission speed
100 Mbps
Electrical
specifications
Power voltage
3.3 V DC (provided by the drive)
Insulation voltage
500 V DC
