25

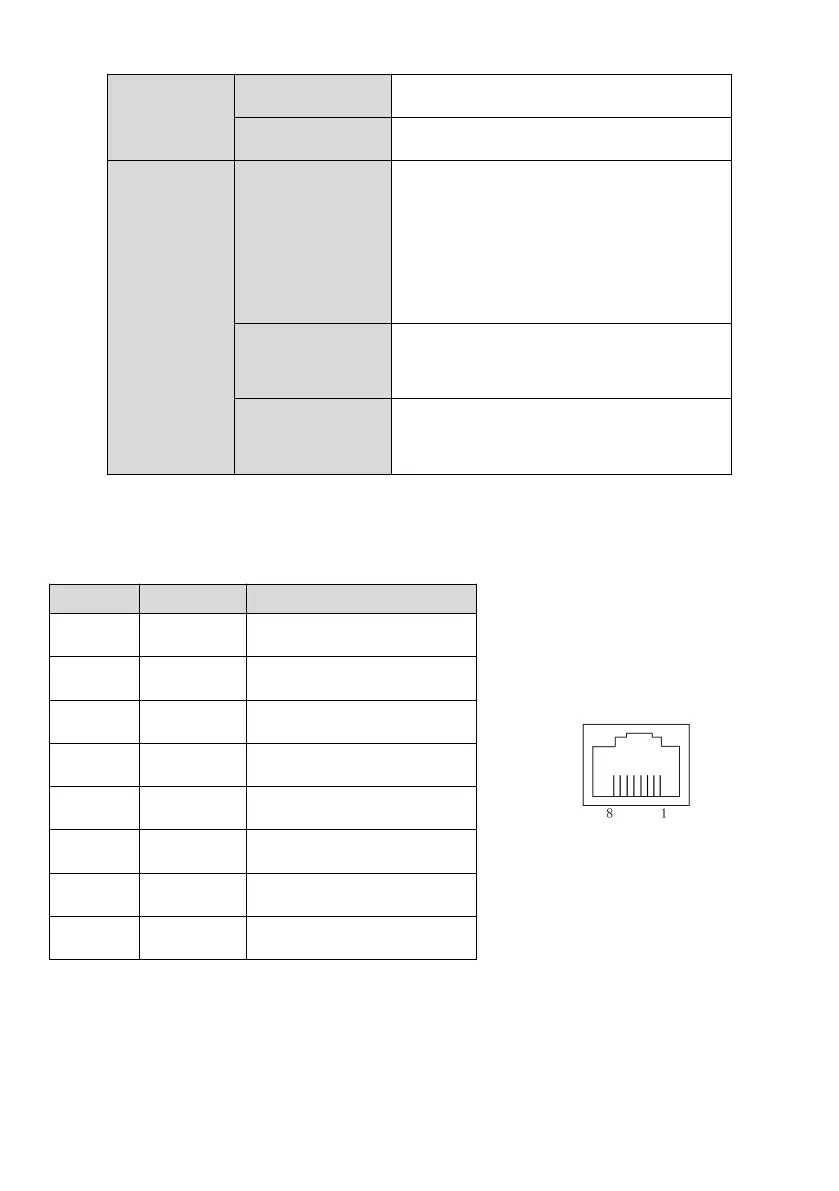

Power consumption
1 W
Weight
25 g
Environment
specifications
Noise immunity
ESD (IEC 61800-5-1, IEC 6100-4-2)
EFT (IEC 61800-5-1, IEC 6100-4-4)
Surge Test (IEC 61800-5-1, IEC 6100-4-5)
Conducted Susceptibility Test (IEC 61800-5-1, IEC
6100-4-6)
Operating/Storage
environment
Operating: -10 to 50℃ (temperature), 90% (humidity)
Storage: -25 to 70℃ (temperature), 95% (humidity)
Vibration/Shock
resistance
IEC 61131-2, IEC 68-2-6 (TEST FC) /
IEC 61131-2 & IEC 68-2-27 (TEST Ea)
2.1.2.4 Pin definitions
Pin definitions of the PROFINET connector:
Pin
Name
Description
1
TX+
Transmit Data+
2
TX-
Transmit Data-
3
RX+
Receive Data+
4
n/c
NOT CONNECTED
5
n/c
NOT CONNECTED
6
RX-
Receive Data-
7
n/c
NOT CONNECTED
8
n/c
NOT CONNECTED
2.1.2.5 LED indicator description and fault diagnosis
MV810-PNET01 has two LED indicators: the LED on the light guide column of the expansion box and the LED on the
communication port. The LED on the light guide column indicates whether MV810-PNET01 has established
