41

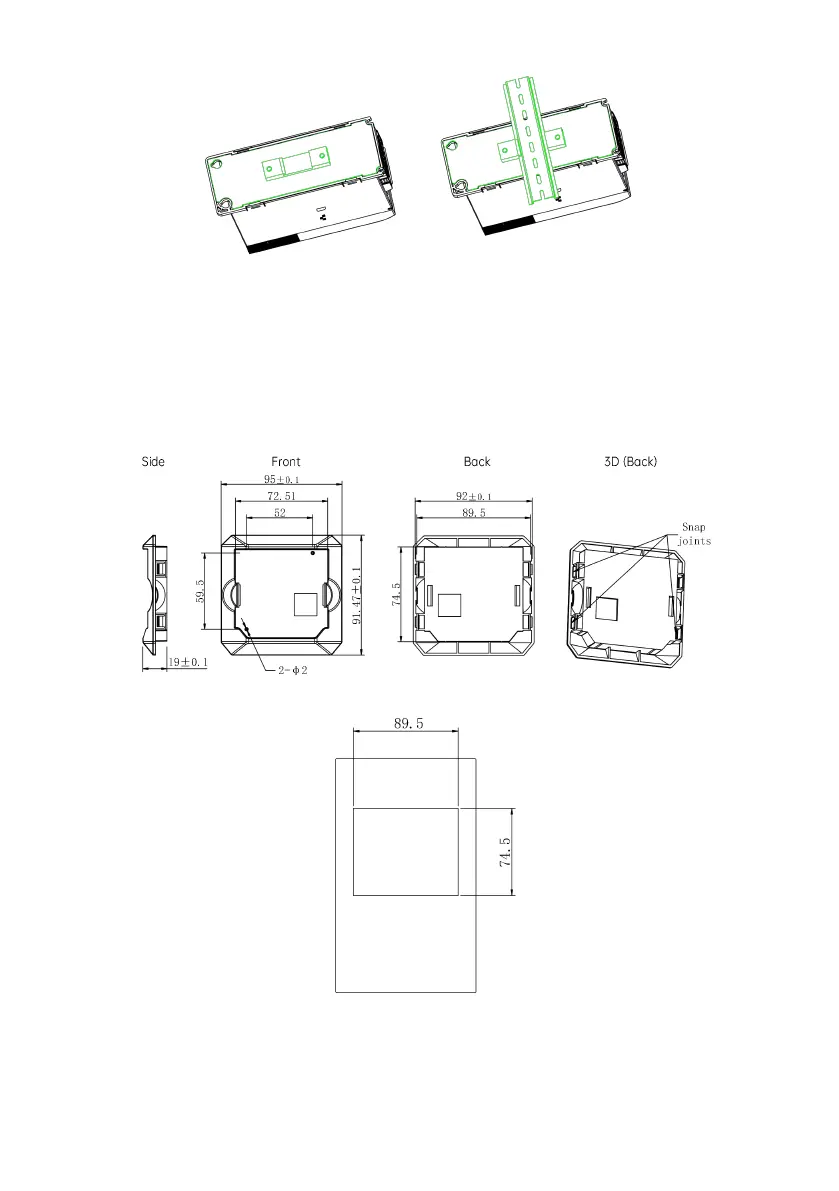

Fig. 2-22 Guide rail bracket
2.2.6 Keypad/Operating panel mounting base
Model: MV820-JPT, used to install the remote keypad/operating panel to the cabinet door, as shown in the following
figure:
Fig. 2-23 Keypad mounting base
Fig. 2-24 Mounting dimensions of operating panel fixed base
