2.2.7 Remote LED keypad/operating panel (with shuttle)
MV820-DP01, remote LED operating panel, removable, supporting external use, with the shuttle button, parameter copy
function (refer to P00.07) and IP23 protection.

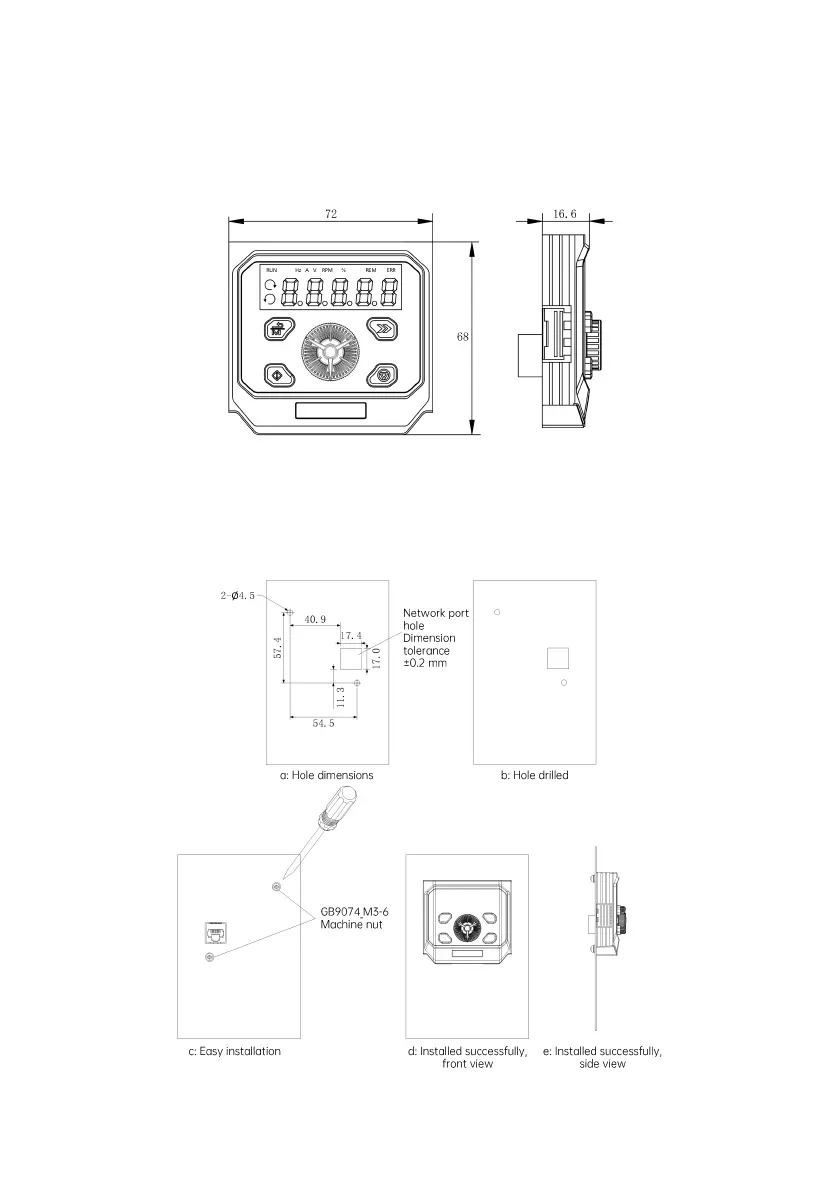

Fig. 2-25 Remote LED keypad/Operating panel
The remote LED keypad/operating panel can be fixed to the cabinet door/plate through a mounting base (see 2.2.6 for
details); or easily through the two diagonal internal thread holes provided on the back of the remote LED
keypad/operating panel, as shown in the following figure. Hole dimensions (unit: mm):
Fig. 2-26 Easy installation of remote LED keypad/Operating panel
