4 Description of the device
13

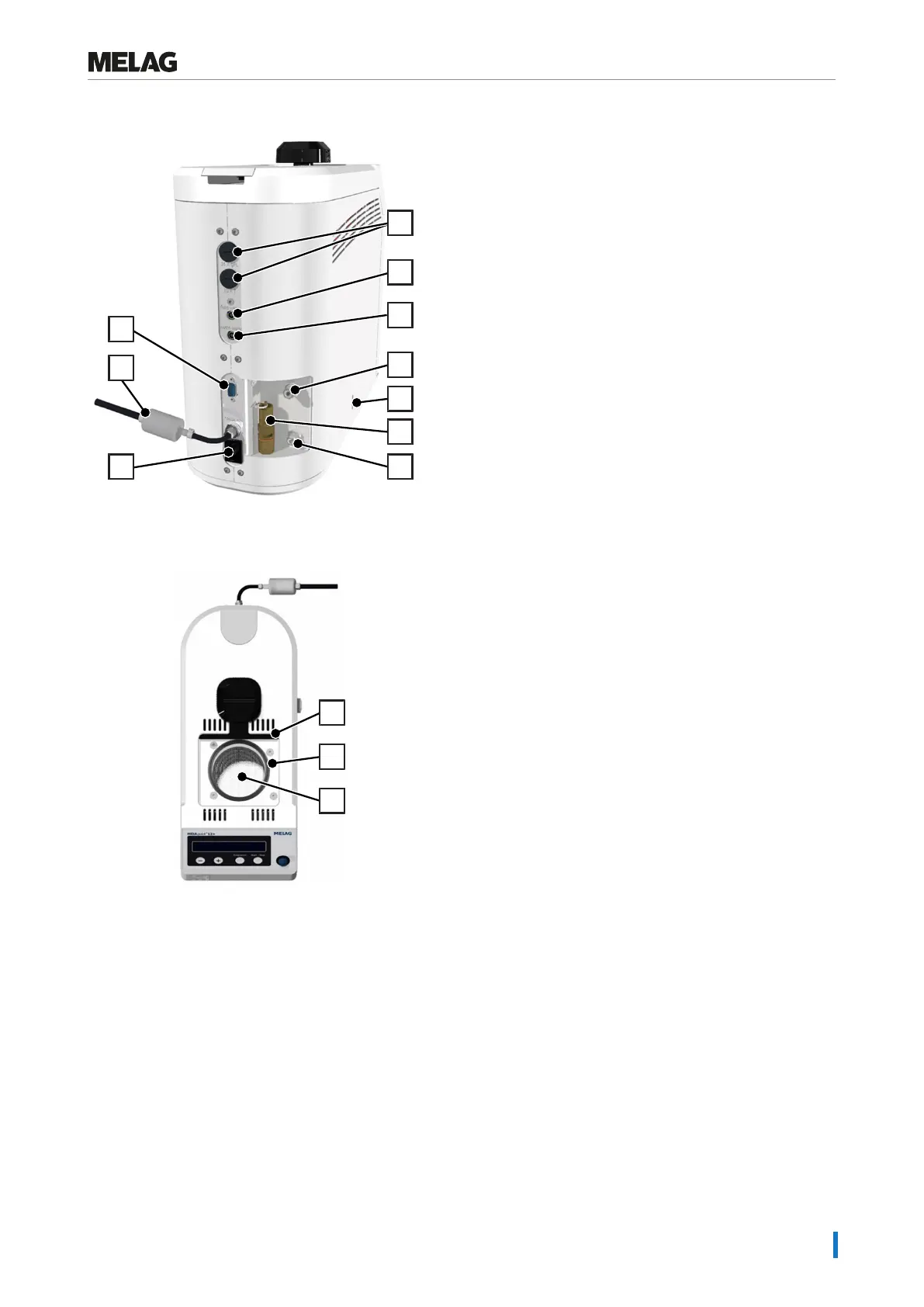

View from rear
6
7
8
9
10
11
12
13
14
5
5 Device fuse
6 Cable connection for monitoring the
water level in the feed water container
7 Cable connection for monitoring the
water level in the wastewater container
8 Connection for wastewater container
9 Slot for emergency release
10 Spring safety valve
11 Connection for feed water container
12 Mains supply for IEC plug
13 Sterile filter and connection for
compressed air (only MELAquick 12+)
14 Serial interface (RS232)
Top view
15
16
17
15 Wiping rubber (under sliding door)
16 Door gasket
17 Sieve tray
