13 Technical tables
64
13 Technical tables
Nominal value tolerances
Step Quick-
Program S
Universal-Pro-
gram S
Prion-
Program S
All values in mbar
P T P T P T
1. fractionation 2700 -30/+160 ◄ ◄ ◄ ◄ Steam intake Fractionation
1250 -390/+30 ◄ ◄ ◄ ◄ Steam off-flow
x. fractionation 2700 -50/+110 ◄ ◄ ◄ ◄ Steam intake
1250 -160/+50 ◄ ◄ ◄ ◄ Steam off-flow
-- 3050 -50/+70 ◄ ◄ ◄ ◄ Pressure increase --
3050 -50/+70 ◄ ◄ ◄ ◄ Sterilization entry
3170 -90/+90 ◄ ◄ ◄ ◄ Sterilization
1200 -140/+50 ◄ ◄ ◄ ◄ Pressure release
Key:
P = Pressure
T = Tolerance
◄ as in the Quick-Program S

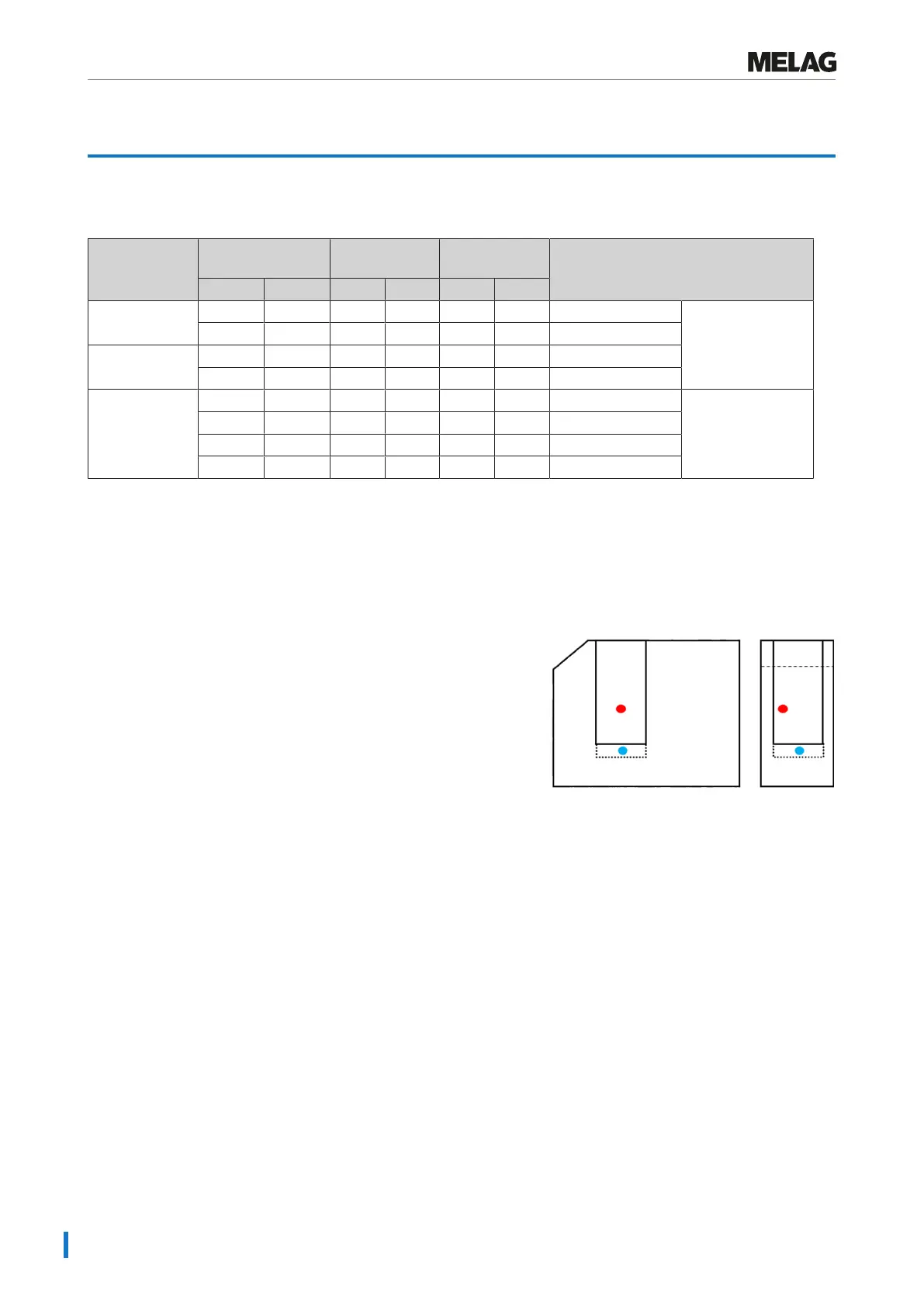

Empty chamber test
The blue marking in the schematic diagram indicates the coldest point
(directly at the temperature sensor) in the sterilization chamber during
the }empty chamber test.
The red marking in the schematic diagram indicates the point with the
highest temperature in the sterilization chamber during the empty
chamber test.
