Space requirements
NOTICE
Failure to observe the space requirements can result the build-up of heat. This could adversely affect the
function of the device and entail the shortening of the components' lifetime and result in extended program
times.
n Without fail, keep the specified distance free to the surrounding surfaces at the sides and above the
device.
The distance to the surrounding surfaces must be at least 5cm on both sides and 10cm at the back side. The steam
sterilizer should be freely accessible from above, so that you can load it and good ventilation is guaranteed.

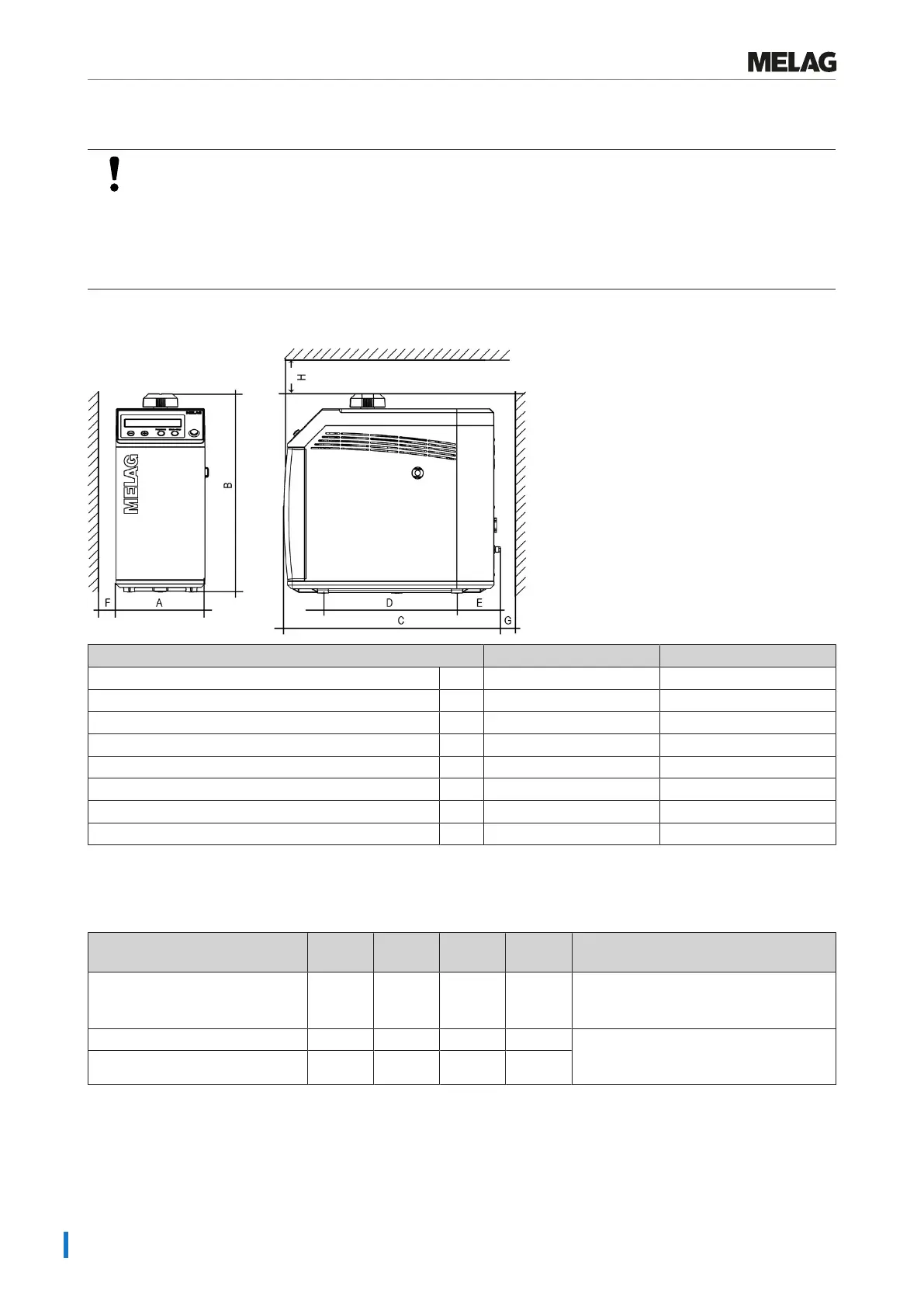

Dimensions MELAquick 12+ MELAquick 12+ p
Width A 19.5 cm 20.5 cm
Height B 43 cm 43 cm
Depth C 47 cm 46 cm
Clearance between the device feet D 29 cm 29 cm
Clearance from rear device foot up to the rear panel E 9 cm 8cm
Min. clearance to the side F 5 cm 5 cm
Min. clearance to the rear G 10 cm 10 cm
Min. clearance to the top H 22 cm 22 cm
Additional space requirements
In addition to the space required for the steam sterilizer, you need space for the feed water and wastewater containers.
Space requirement
Water treatment unit
Width Height Depth Diame-
ter
Installation
MELAdem 40 32cm 35cm 15cm -- The attachment can be next to the steam
sterilizer, above or below the steam
sterilizer
MELAdem 47 module housing 39cm 47cm 15cm -- Attachment next to the steam sterilizer,
above or below the steam sterilizer (e.g.
lower cabinet)
MELAdem 47 storage container -- 51cm -- 24cm
