NON-BIGFOOT GEAR HOUSING
Page 6A-22 90-828631R3 MARCH 1999
Water Pump Seals
NOTE: All gaskets, seals and O-rings should be replaced as a normal repair procedure dur-
ing gear case disassembly.
NOTE: DO NOT use a screwdriver to remove seals from carrier, as carrier may be dam-
aged.

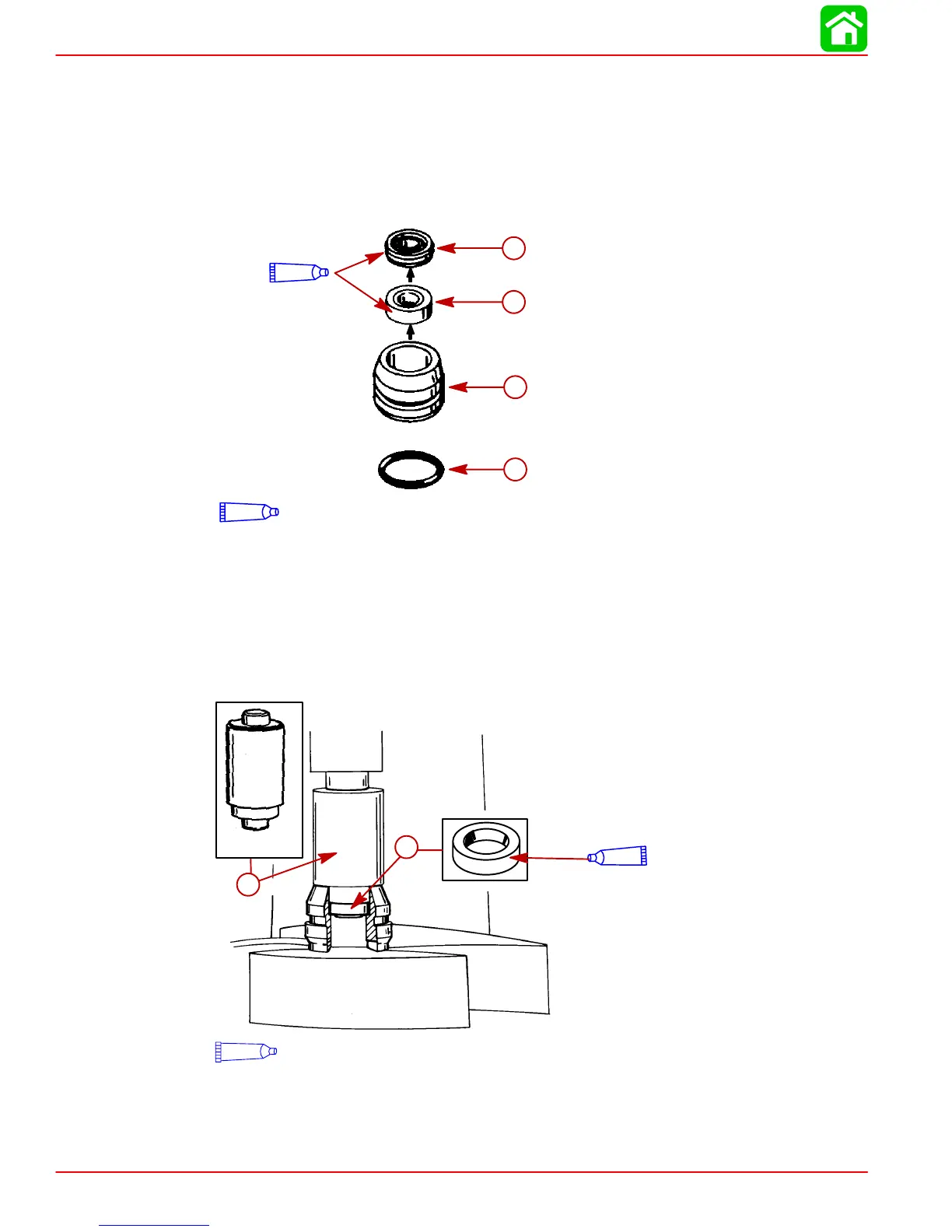

1. Using a suitable mandrel, press both seals from carrier.
7
7
Loctite “271” (92-809819)
a
b
c
d
a-Neoprene Ribbed Seal
b-Metal Cased Seal
c-Carrier
d-O-ring
2. Apply Loctite 271 to the O.D. of the metal cased seal. With seal lip facing away from the
large shoulder of mandrel (91-825197), press seal into carrier until mandrel bottoms on
carrier.
91-825197
a
b
7
Loctite “271” (92-809819)
7
a-Seal (Metal Cased) Lip Facing Down
b-Mandrel (91-825197)
To Next Page
