Mercury 90-863160

DRIVE SHAFT HOUSING
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 3A-9

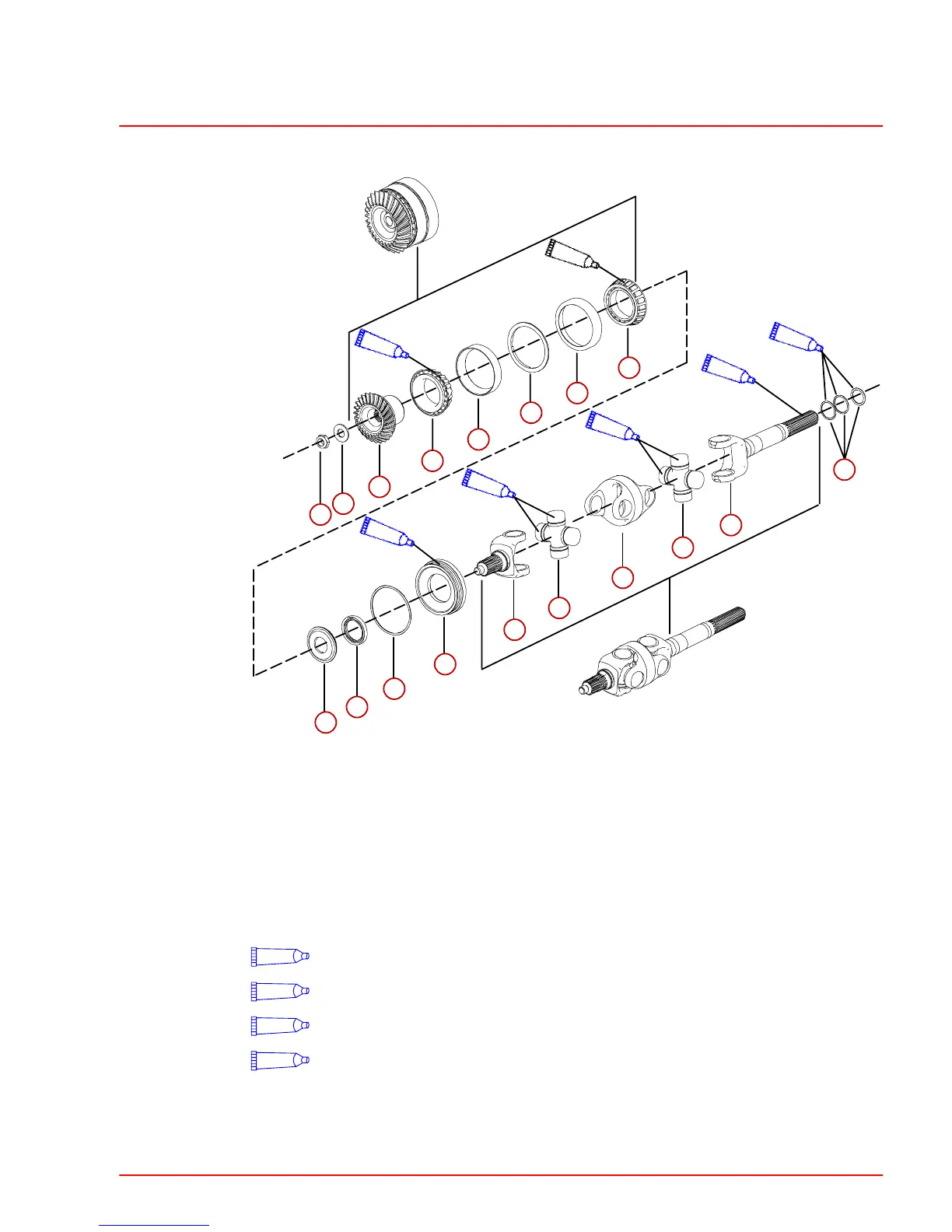

Bravo X, XZ, XR and Diesel Bravo U-joint Assembly
A
A
B
C
C
1
2
3
4
5
6
7
8
16
17
15
14
13
12
11
10
9
18
76856
C
D
1-Locknut
2-Washer
3-Pinion Gear
4-Bearing Cup (Smaller OD)
5-Bearing (Smaller ID)
6-Spacer
7-Bearing Cup (Larger ID)
8-Bearing Larger OD)
9-Thrust Washer
10 - Oil Seal
11 - O-Ring
12 - Retainer Nut
13 - Yoke
14 - Cross and Bearing
15 - Socket
16 - Cross and Bearing
17 - Yoke
18 - O-rings (3)
A
- Quicksilver High Performance Gear Lube
B
- Quicksilver Special Lubricant 101
C
- Exxon Unirex EP2 Grease
D
- Engine Coupler Spline Grease
