Mercury 90-863160

TRIM CYLINDERS
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 5B-9

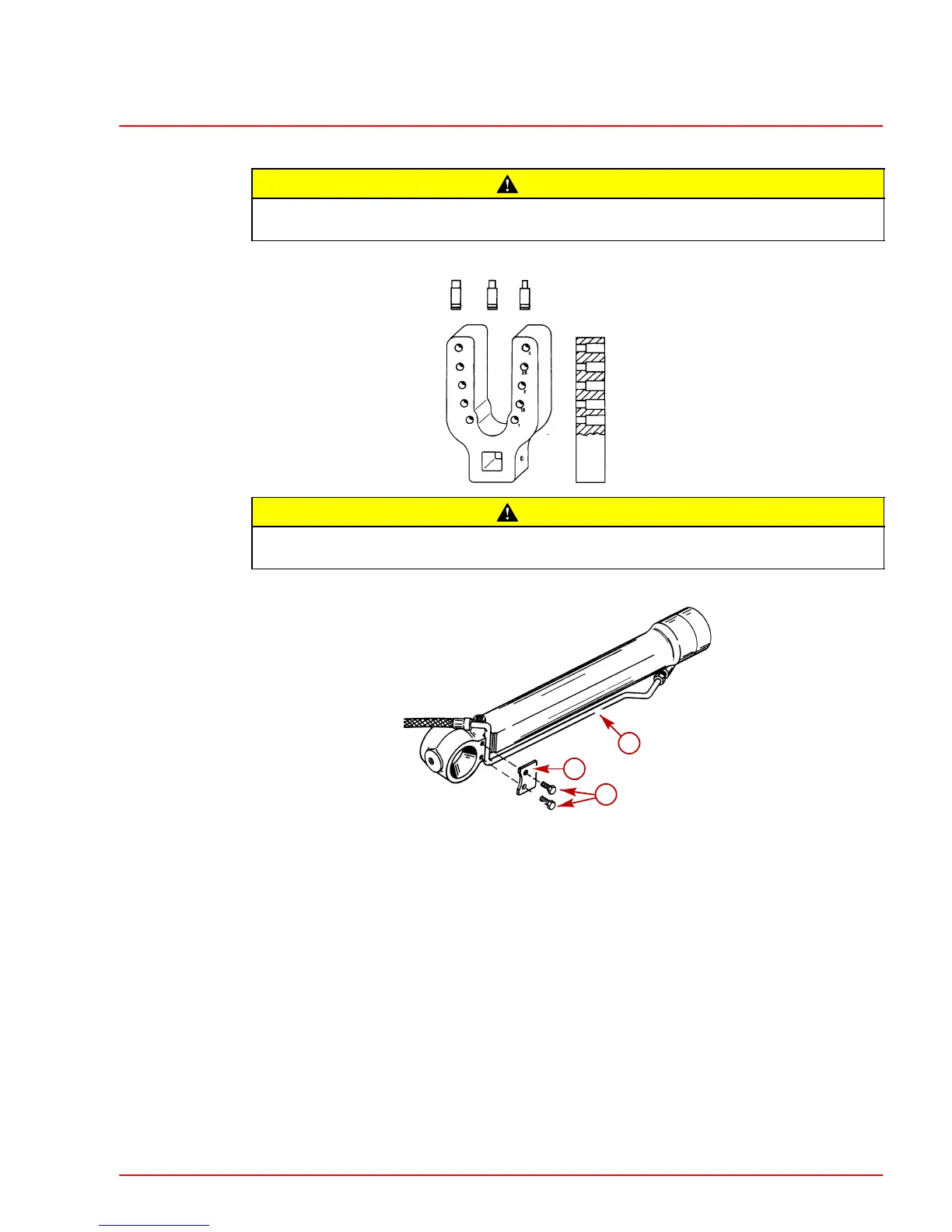

Disassembly
CAUTION
Ensure work area is clean before disassembling power trim cylinders. Cylinder
parts can be damaged by dirt entering into power trim system.
NOTE: Spanner Wrench Tool Part No. 91-821709.
71233
CAUTION
DO NOT clamp center section of power trim cylinder during assembly or disassem-
bly. Clamp cylinder on front mounting flange.
1. Remove IN/DOWN trim hose from cylinder.
22134
a
b
c
a-IN/DOWN Trim Hose
b-Clamping Plate
c-Screws
